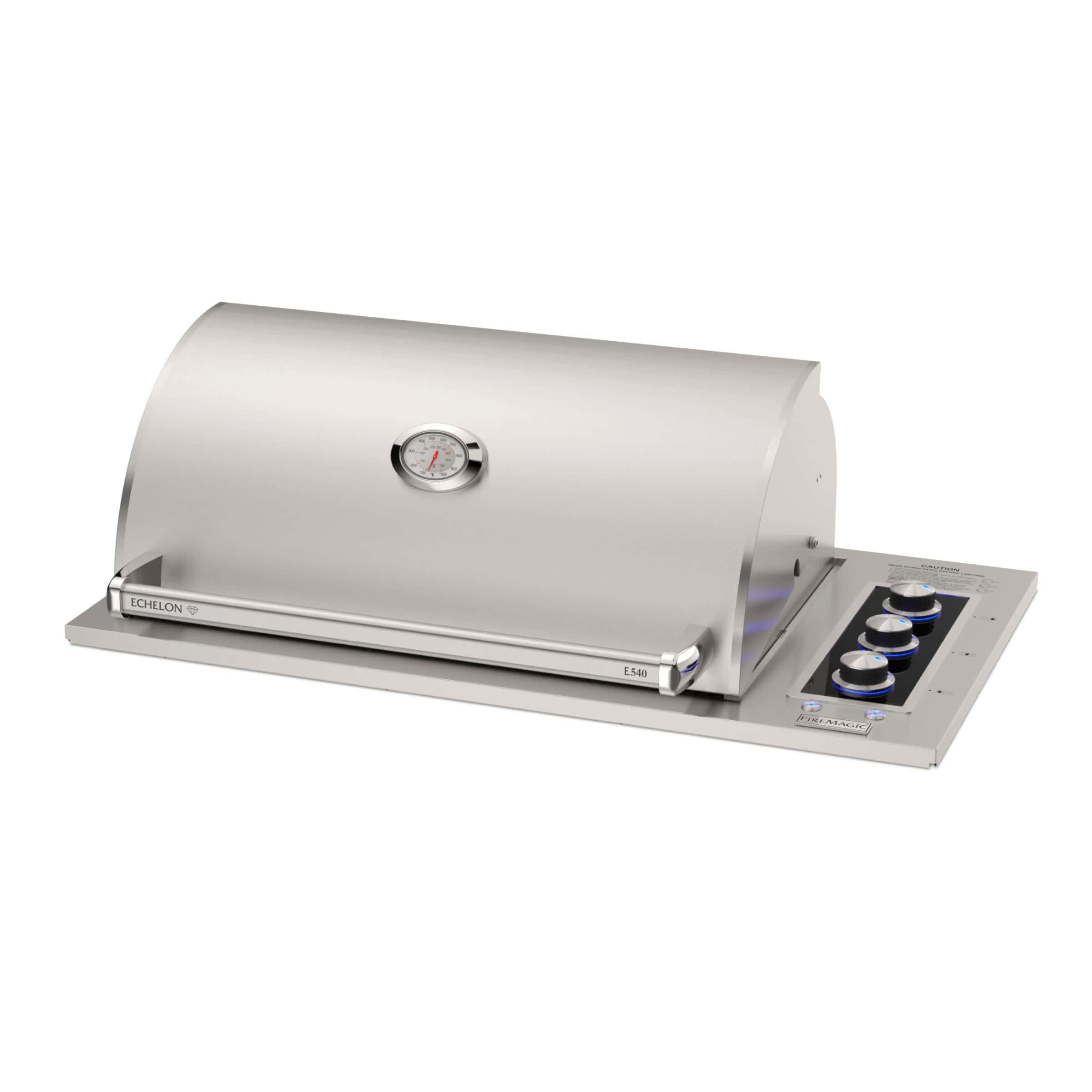

Fire Magic Echelon E540d Drop In Grill with Hood: a low gas grill for countertop islands
The Fire Magic Echelon E540d Drop In Grill with Hood is a 30 inch drop in gas grill. Drop in means it lowers into an opening in the countertop from above and hangs from its rim, so it sits low and flush in the island. It suits homeowners who want an Echelon grill without a tall control panel. Fire Magic builds it in the USA from 304 stainless steel, the grade that holds up best outdoors. Stainless steel tube burners give 54,000 BTUs. It gives you about 540 square inches of cooking space plus a warming rack.
The grates are Diamond Sear grids, thick stainless steel bars with a flat top for clean sear marks. A low hood with halogen lights inside covers the grates, so you can roast with the lid down or cook after dark. It lights with an electric spark, so plan for an outlet in the island. A dial in the hood shows the oven heat at a glance. The control panel has the black glass trim of the Echelon line. A rotisserie kit is sold separately. On the page you pick natural gas or propane, and it comes built for that gas. Prefer an open top? See the Fire Magic Echelon E540d No Hood Drop In Grill. The Fire Magic Echelon E540d Drop In Grill with Hood ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
SKU: E540D-6TAN | E540D-6TAP
- Cooking Surface: 30″w x 18″d (540 sq. in.)
- Warming Rack: 30″w x 8″d (240 sq. in.)
- Main burners: 54,000 BTU’s
- Cut-out size: 41 1/2“ w x 20 1/2″d x 18″h
FAQ
What does drop-in mean on the E540d?
The grill body drops into an 18-inch-deep countertop opening and hangs from its rim, rather than sliding into a framed cutout with a full-height control panel. That gives a low, flush look in an island. The Specifications tab lists the opening at 41 1/2 inches wide, 20 1/2 inches deep and 18 inches high; the Fire Magic spec guide shows 41 3/4 by 20 3/4 for the same model, so confirm with the guide before cutting.
How much cooking space does the drop-in grill have?
The cooking area is 30 by 18 inches, or 540 square inches, with a 30 by 8 inch warming rack above it. The Specifications tab rates the 304 stainless steel tube burners at 54,000 BTUs. The new sleek hood carries an analog thermometer and the black glass accent on the control panel matches the rest of the Echelon line.
Does it need electricity?
Yes. The Key Features list electric spark ignition on 110 to 120 volts and internal halogen lights, so plan a weatherproof GFCI outlet within reach of the enclosure. As with the other Fire Magic gas grills, an outage means lighting the burners by hand with a long match or lighter.
Can I add a rotisserie?
The Key Features note that a rotisserie kit is available for this grill, but it is not an on-page selector, so contact us to add the kit to your order. Unlike the Echelon built-in grills, the drop-in uses tube burners and does not list a backburner, so ask about the kit’s mounting before you finalize the island design.
Is there a version without the hood?
Yes. Fire Magic also offers the E540d as a hoodless flat-top drop-in grill for open, interactive cooking; it is listed separately. This E540d-6TAN version includes the sleek hood with analog thermometer for roasting and indirect cooking. Both share the black glass control panel and the same drop-in opening.
Natural gas or propane?
Both. Pick the fuel on the Gas Type selector before adding to cart; the Specifications tab lists E540D-6TAN for natural gas and E540D-6TAP for propane. Ordering the correct version from the start avoids an orifice change, and a propane cylinder inside the island needs the usual floor-level ventilation. Browse more Echelon grills here.
