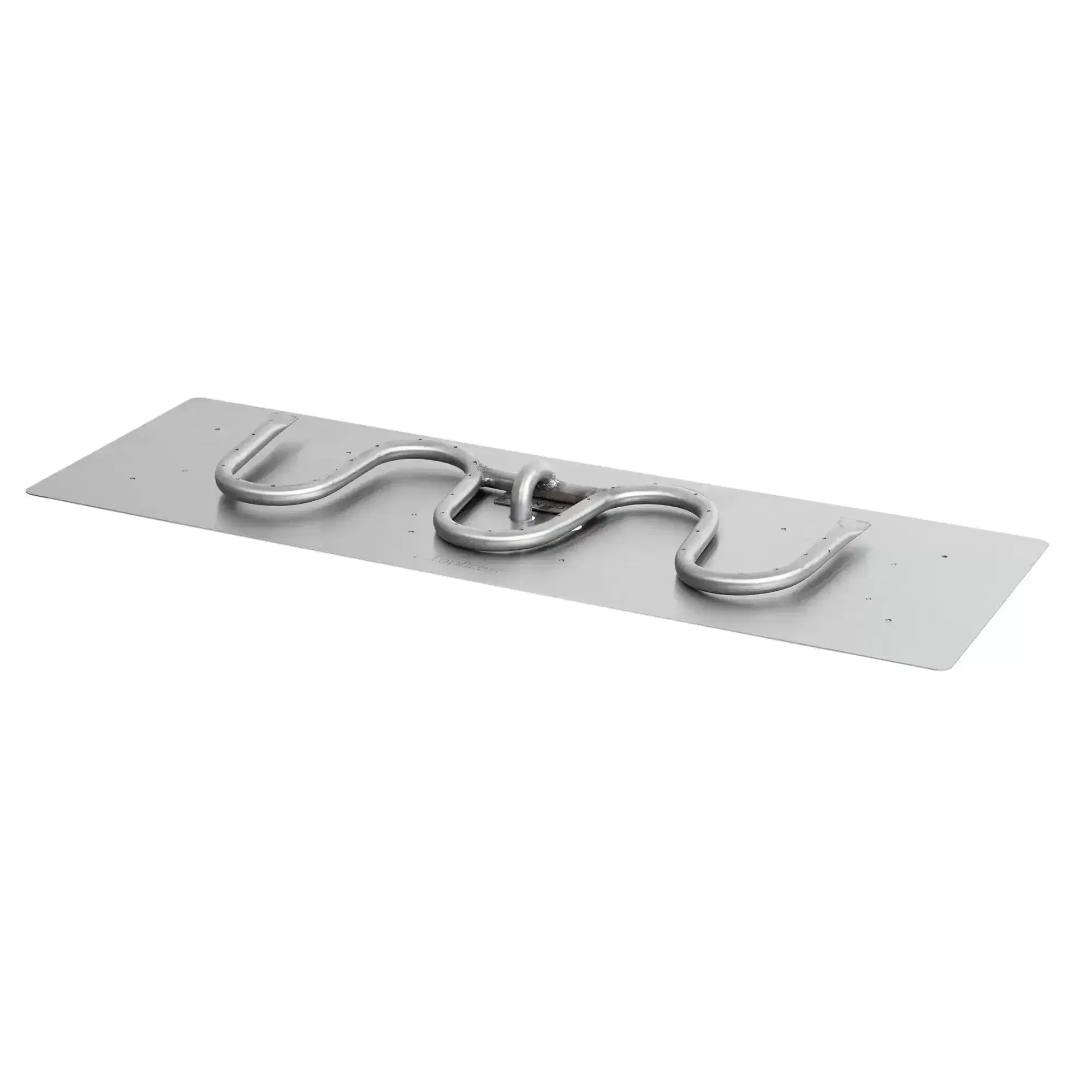

18-inch wide flat pan with switchback burner: a wide zigzag flame for a broad linear pit, 24 to 96 inches
The Outdoor Plus 18 inch wide rectangular flat pan and switchback burner fits broad, linear fire pits. Its rimless stainless steel plate spans the enclosure beneath lava rock or fire glass. Made in the USA, it measures 18 inches across and 24 to 96 inches long. One tube forms three S-curves, spreading flames across the full width instead of along one straight line.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. Building a narrower trough? The 12-inch wide flat pan with switchback burner fits a 12 inch opening. The 18 inch switchback set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Rectangular Flat Pan & SS Switchback Burner – Specification Sheets
SKU: OPT-RFSB1824 | OPT-RFSB1830 | OPT-RFSB1836 | OPT-RFSB1842 | OPT-RFSB1848 | OPT-RFSB1860 | OPT-RFSB1872 | OPT-RFSB1884 | OPT-RFSB1896
| Size | 24″ x 18″, 24″ x 12″, 30″ x 18″, 30″ x 12″, 36″ x 12″, 36″ x 18″, 42″ x 12″, 42″ x 18″, 48″ x 18″, 48″ x 12″, 60″ x 18″, 60″ x 12″, 72″ x 18″, 72″ x 12″, 84″ x 18″, 84″ x 12″, 96″ x 18″, 96″ x 12″ |
|---|---|
| Ignition Type | Pan & Burner Only (Match Lit), Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
What is the case for pairing the switchback with an 18-inch pan?
Coverage. On a pan this wide a straight burner leaves broad unlit shoulders, but the serpentine switchback weaves flame through the whole 18-inch media field. If you are building a statement wall or oversized table and want fire everywhere you look, this is the combination.
What lengths and part numbers should I spec?
OPT-RFSB1824 through OPT-RFSB1896 — nine lengths at 24, 30, 36, 42, 48, 60, 72, 84 and 96 inches, all 18 inches wide. The odd intermediate lengths like 42 and 60 inches make it easier to match an opening your mason has already framed.
What arrives with the pan, and what do I still need?
The stainless 18-inch flat pan comes with its switchback burner as a matched assembly, plus whatever ignition tier you order, up to CSA-certified Plug and Play. You supply the enclosure, media and gas run — and a licensed installer to connect and leak-test it.
Is a flame-supervision option worth it outdoors?
On a big open pan, usually yes. The Flame Sense versions of the OPT-RFSB18 series shut off gas automatically if wind kills the flame, so an unattended feature never vents raw propane into the yard. Match lit is simplest; supervision buys peace of mind.
Will an 18-inch switchback actually warm the seating area?
More than most expect — flame along the full serpentine path throws radiant heat across a wide arc, and output scales with the length you order. The spec sheet lists ratings per size. Arrange seating just outside the listed clearances and it becomes the warm side of the patio.
Is this the shortcut to building a large custom fire pit?
It is the engineered core of one. Instead of fabricating a pan and bending burner tube yourself, you frame the enclosure and drop this 18-inch assembly on top — the same anatomy as any finished gas fire pit, sized to your masonry. Gas hookup goes to a licensed professional.
Does rain ruin the pan or burner?
No — stainless pan, stainless burner, both built for open weather. After a storm, run the switchback for a few minutes to steam moisture out of the ports before expecting a perfect flame. Covering the feature between uses keeps leaves out of an 18-inch media bed.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options
Match Lit
The simplest system — light the burner by hand. No power needed.
Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.
Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.
12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.
110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
