12-inch wide flat pan with H burner: an even stainless flame the full length of a linear pit, 24 to 96 inches
The Outdoor Plus 12 inch wide rectangular flat pan and H burner is an insert for long rectangular fire pits. The rimless stainless plate rests atop the enclosure beneath lava rock or fire glass. Two full-length drilled tubes join centrally like an H, giving even flames along both sides. Made in the USA, it comes 24 to 96 inches long by 12 inches wide.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. For a lipped opening, try the 12-inch drop-in pan with H burner, which hangs inside the enclosure. The 12 inch H burner set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Rectangular Flat Pan and SS H Burner – Specification Sheets
SKU: OPT-REFD1224 | OPT-REFD1230 | OPT-REFD1236 | OPT-REFD1242 | OPT-REFD1248 | OPT-REFD1260 | OPT-REFD1272 | OPT-REFD1284 | OPT-REFD1296
| Size | 24″ x 18″, 24″ x 12″, 30″ x 18″, 30″ x 12″, 36″ x 18″, 36″ x 12″, 42″ x 18″, 42″ x 12″, 48″ x 18″, 48″ x 12″, 60″ x 18″, 60″ x 12″, 72″ x 12″, 72″ x 18″, 84″ x 12″, 84″ x 18″, 96″ x 18″, 96″ x 12″ |
|---|---|
| Ignition Type | Pan & Burner Only (Match Lit), Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
What does the H pattern do that a straight burner cannot?
The stainless H burner runs two parallel rails linked by a crossbar, pushing flame toward both long edges of the 12-inch pan. A single straight tube leaves wide shoulders of unlit media; the H fills the pan visually, which is why it is the default for wider rectangular features.
What sizes can I order this pan and H burner in?
Nine lengths from 24 to 96 inches — SKUs OPT-REFD1224 through OPT-REFD1296 — with the spec sheets covering both 12-inch and 18-inch pan widths. The 12-inch version here suits walls and tables where you want real flame body without an oversized cut-out.
Which ignition systems are available on the OPT-REFD series?
Five tiers: pan and burner only for match lighting, Match Lit with Flame Sense (LC certified), Flame Sense with Spark, Low Voltage Electronic (CSA certified) and Plug and Play (CSA certified). Flame Sense versions shut gas off if the flame blows out — worth it in windy yards.
How would I build a propane fire pit with this kit?
Order the set built for liquid propane, frame your enclosure with ventilation for the tank or run a buried LP line, then drop the flat pan across the opening. It is the proven skeleton of a custom gas fire pit — a licensed installer makes the connections and leak-tests everything.
How far from the house should the finished feature sit?
Follow the clearances in the OPT-REFD spec sheet and your local code — many jurisdictions want gas features roughly 10 feet from structures, though listed clearances can allow closer. Decide placement before running gas; moving a 96 by 12-inch feature later is nobody’s idea of fun.
Does the 12-inch H burner come as propane or natural gas?
Whichever you specify — every 12-inch H burner set is built to order for natural gas or liquid propane. There is no field-flip between fuels, so confirm what the property has (or what your installer plans to run) before you order the pan.
Can you make s’mores over a gas fire pit like this?
Absolutely — the clean flame off the H burner is arguably better for s’mores than wood, since there is no smoke to flavor the marshmallow. Toast above the flame tips, keep graham cracker assembly off the pan edge, and brush sugar drips off the media when cool.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

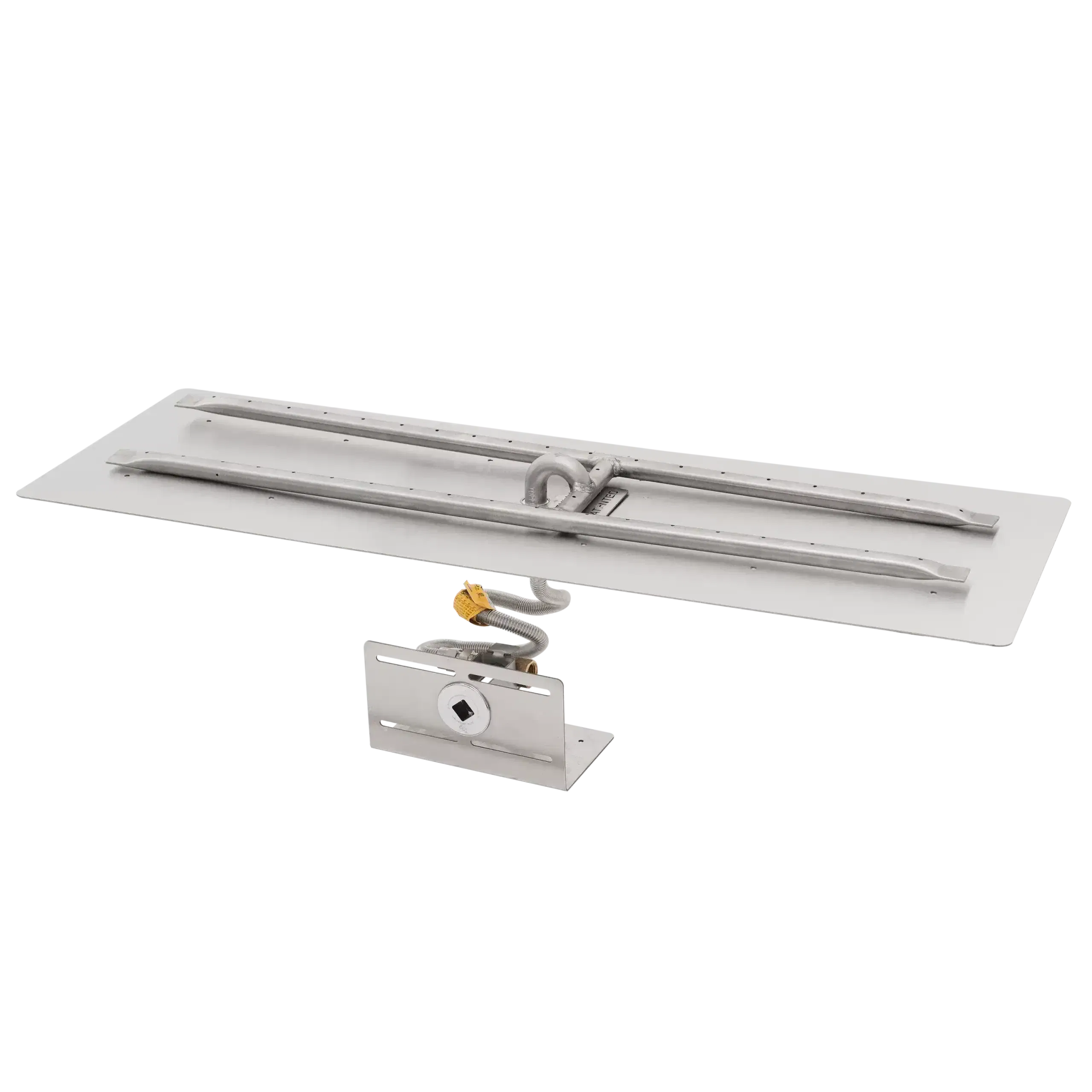

Match Lit
The simplest system — light the burner by hand. No power needed.

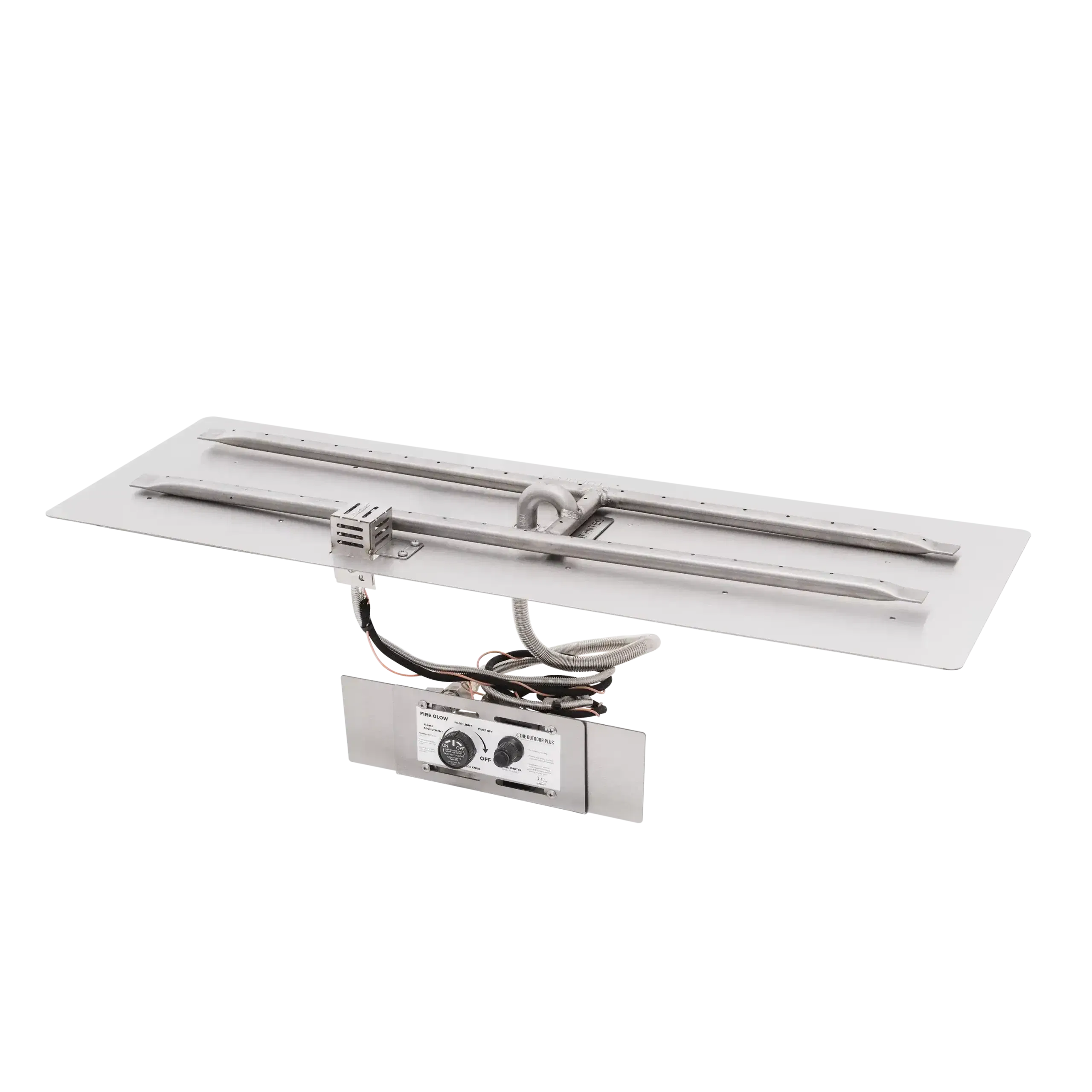

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

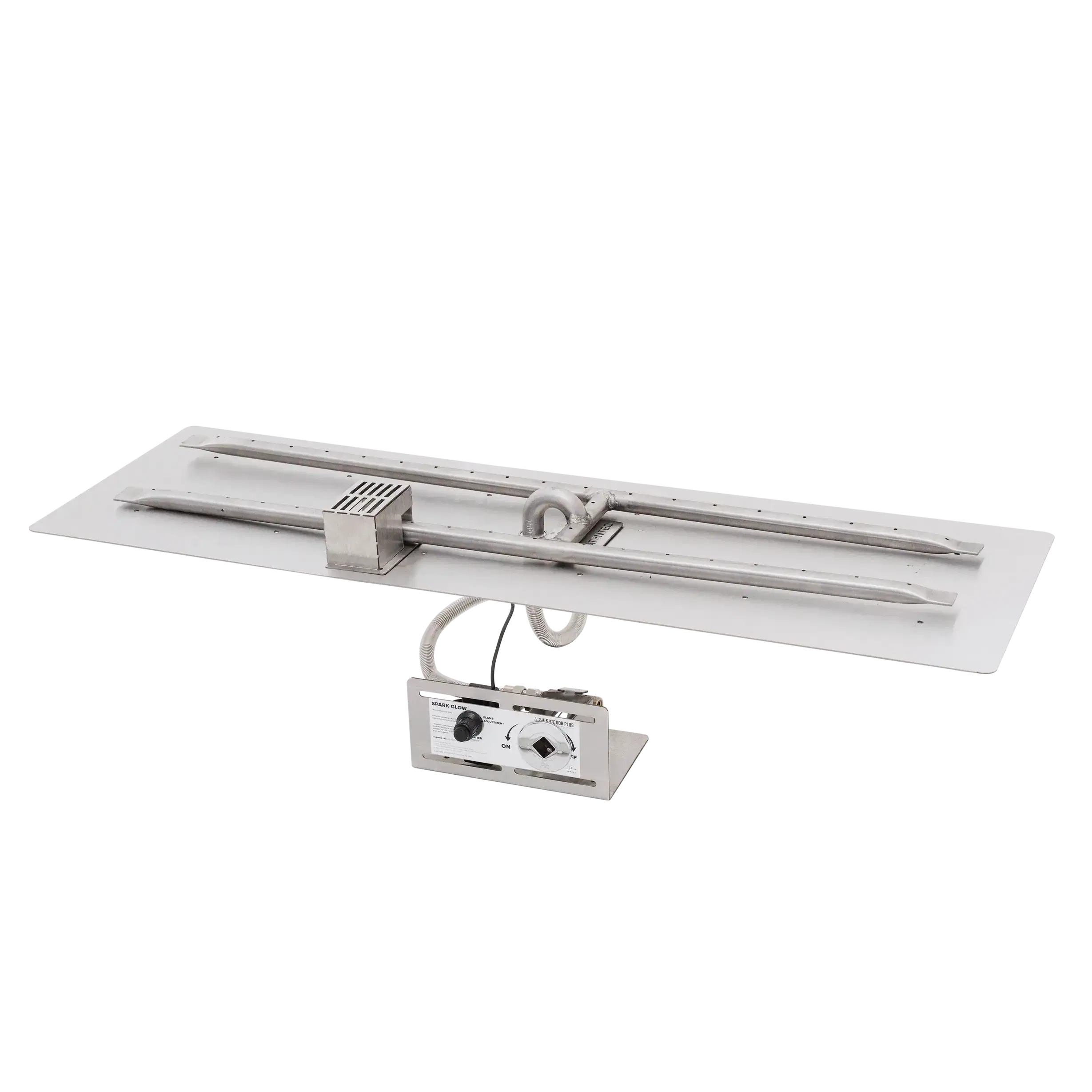

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

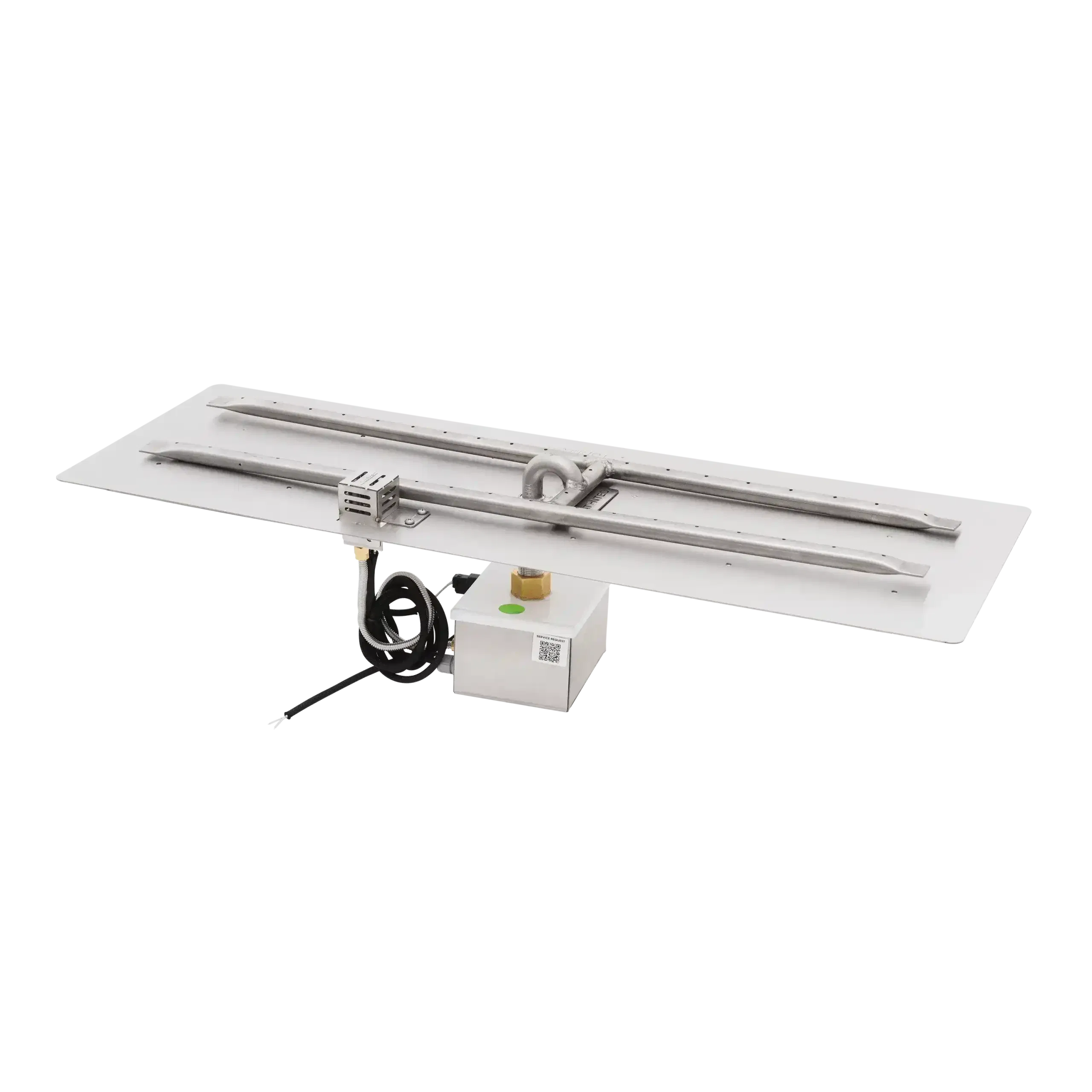

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

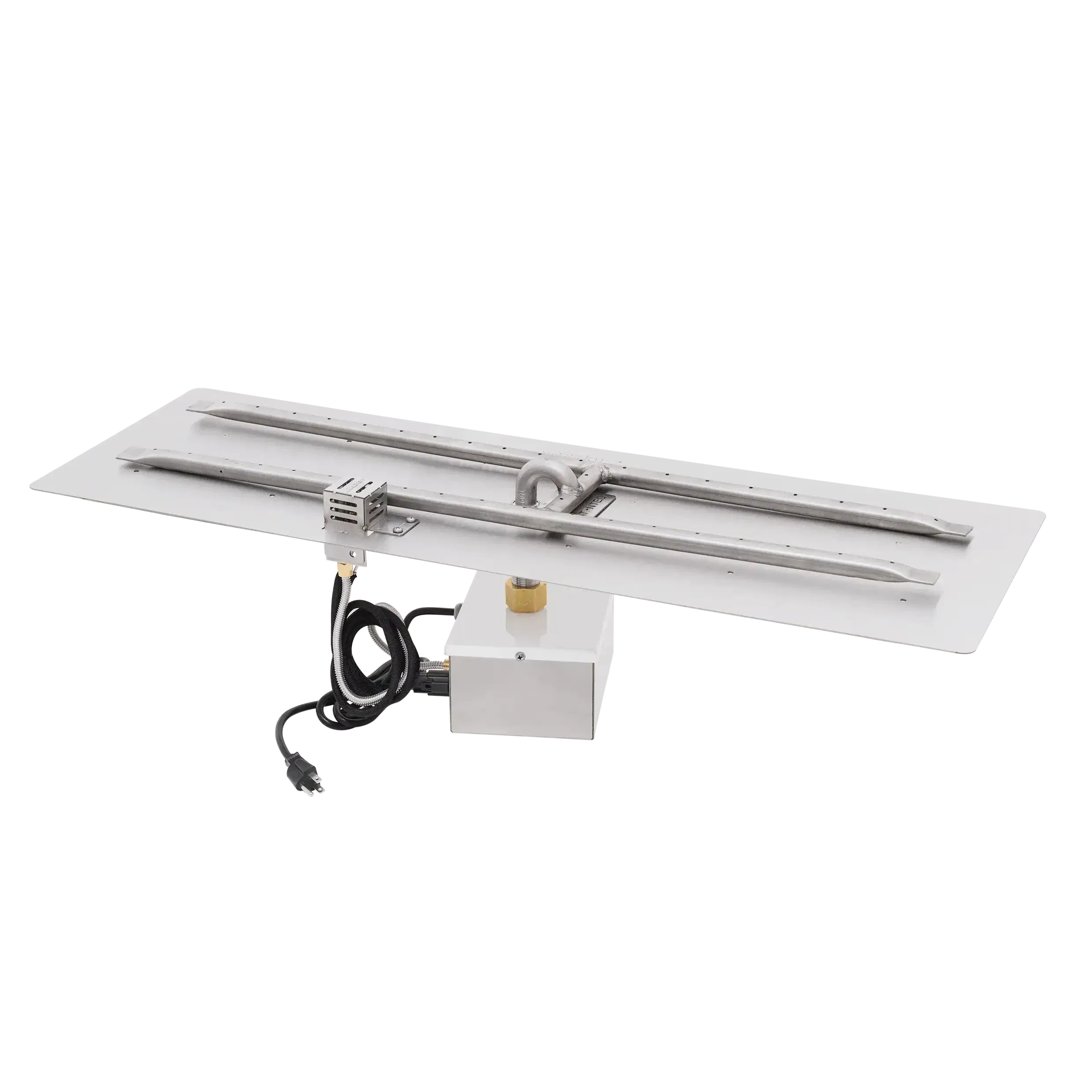

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
