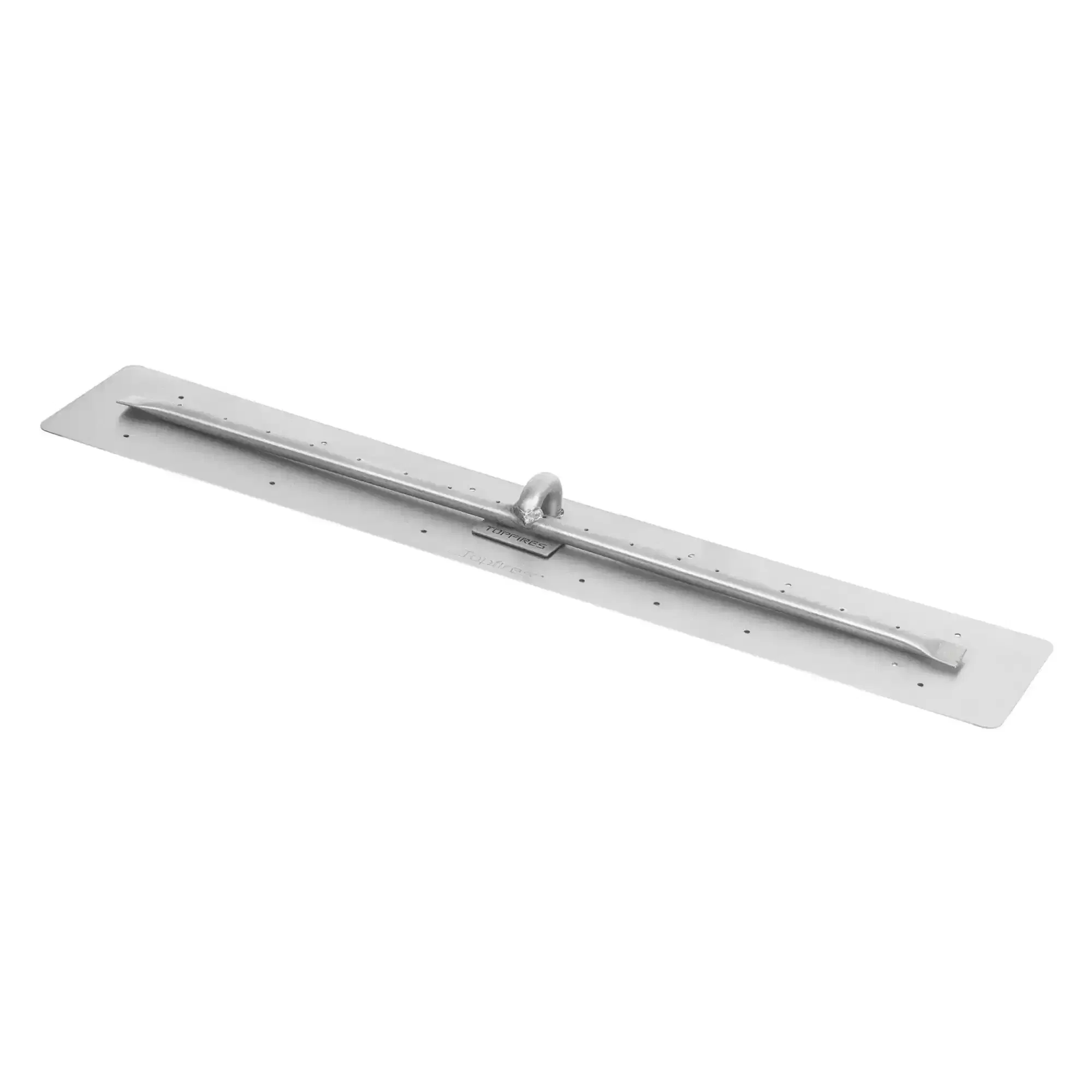

8-inch wide flat pan with linear burner: a single straight flame line for a slim trough, 24 to 96 inches
The Outdoor Plus 8 inch wide rectangular flat pan and linear burner is the insert for a narrow fire trough along a seat wall, bar, or planter. The pan is a flat stainless plate with no rim, 8 inches wide, that lays over the enclosure and hides under lava rock or fire glass. One straight drilled tube runs down the middle for a clean ribbon of flame. Lengths run 24 to 96 inches, made in the USA.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. Need it even slimmer? The 6-inch wide flat pan with linear burner fits a 6 inch opening. The 8 inch linear burner set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Flat Pan and Linear Stainless Steel Burner – Specification Sheets
SKU: OPT-REFS824 | OPT-REFS830 | OPT-REFS836 | OPT-REFS842 | OPT-REFS848 | OPT-REFS860 | OPT-REFS872 | OPT-REFS884 | OPT-REFS896
| Size | 24″ x 8″, 24″ x 6″, 30″ x 8″, 30″ x 6″, 36″ x 8″, 36″ x 6″, 42″ x 8″, 42″ x 6″, 48″ x 8″, 48″ x 6″, 60″ x 8″, 60″ x 6″, 72″ x 6″, 72″ x 8″, 84″ x 6″, 84″ x 8″, 96″ x 6″, 96″ x 8″ |
|---|---|
| Ignition Type | Pan & Burner Only (Match Lit), Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
What does the 8-inch width buy me over the 6-inch pan?
A wider media bed and a fuller flame presence. With the 8-inch flat pan there is more fire glass either side of the stainless linear burner, so the fire looks anchored in the feature rather than perched on a slot. Same nine lengths, 24 through 96 inches.
Which part numbers cover this set?
OPT-REFS824 through OPT-REFS896, spanning 24, 30, 36, 42, 48, 60, 72, 84 and 96-inch lengths. The specification sheets list both 6 and 8-inch pan widths, so double-check you are on the 8-inch line before matching a cut-out to it.
How much upkeep does the stainless burner need?
Very little — that is the argument for stainless. Keep the linear burner ports clear of debris, rinse off pool splash or heavy pollen occasionally, and let it dry before covering. No patina, no refinishing; the OPT-REFS8 series is essentially a set-and-forget component.
Can a feature built with this pan sit on a wood deck?
It can, if the enclosure is engineered for it: non-combustible construction, the clearances from the spec sheet, and a proper barrier between burner heat and the deck framing. Gas features are deck-friendlier than wood fires, but have your installer sign off on the design first.
How hot does a linear burner like this get?
Hot enough that flame height and heat output scale with the length you order — a 96-inch OPT-REFS896 warms a whole seating wall. Exact ratings per size are on the spec sheet; whichever you choose, keep furniture and combustibles outside the listed clearances.
What is the fastest way to build a fire table around it?
Frame the table, cut an opening sized to the 8-inch pan, set it in, and finish the top in tile or stone — the exact anatomy of a production fire pit table, minus the markup. Your gas professional runs the line and mounts the key valve.
Can I put an outdoor rug near the finished fire feature?
Keep rugs and other combustibles outside the clearances in the spec sheet — never under or against the enclosure. Radiant heat off an 8-inch linear flame travels farther than people expect. Hard surfaces like pavers or concrete around the feature are the safer framing.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

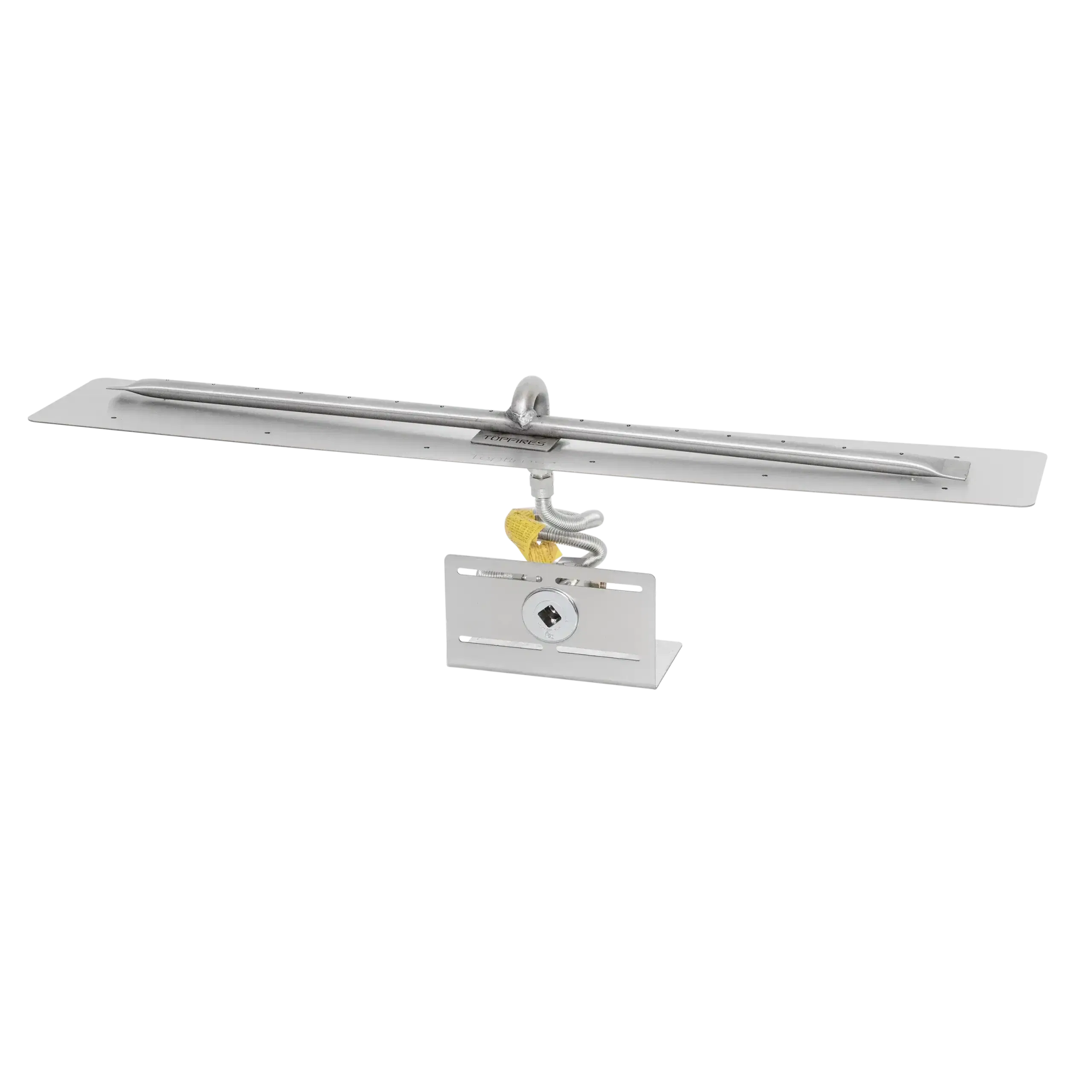

Match Lit
The simplest system — light the burner by hand. No power needed.

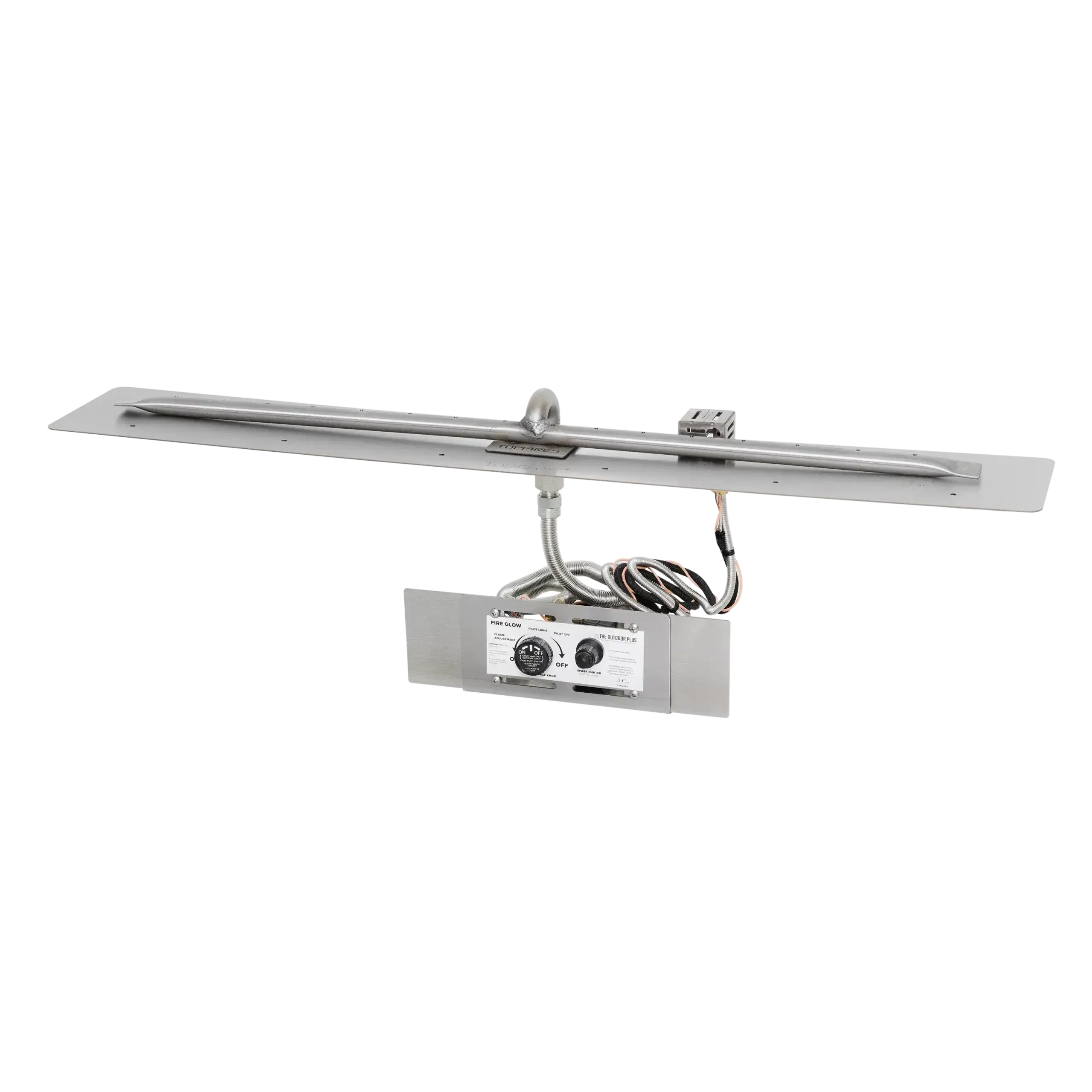

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

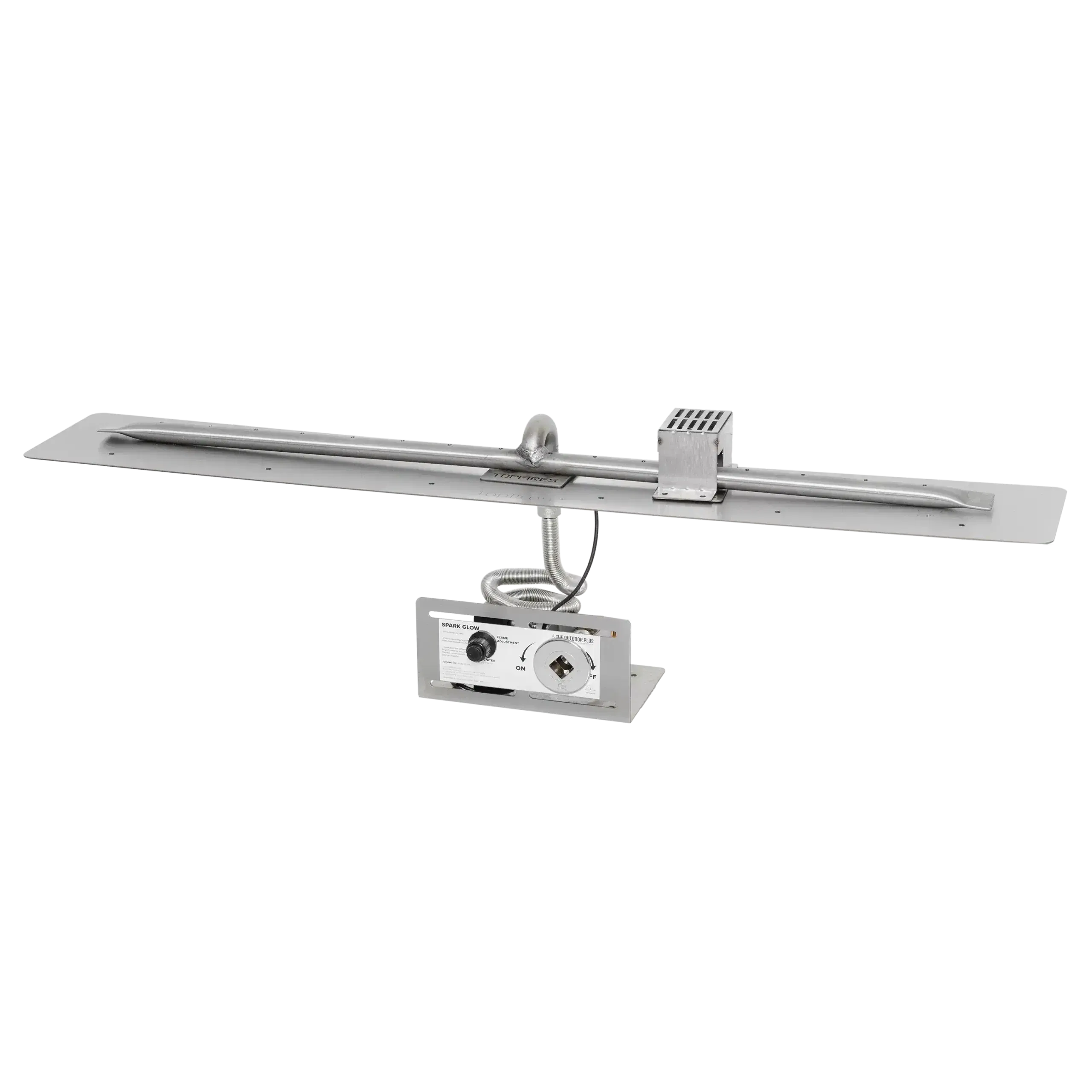

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

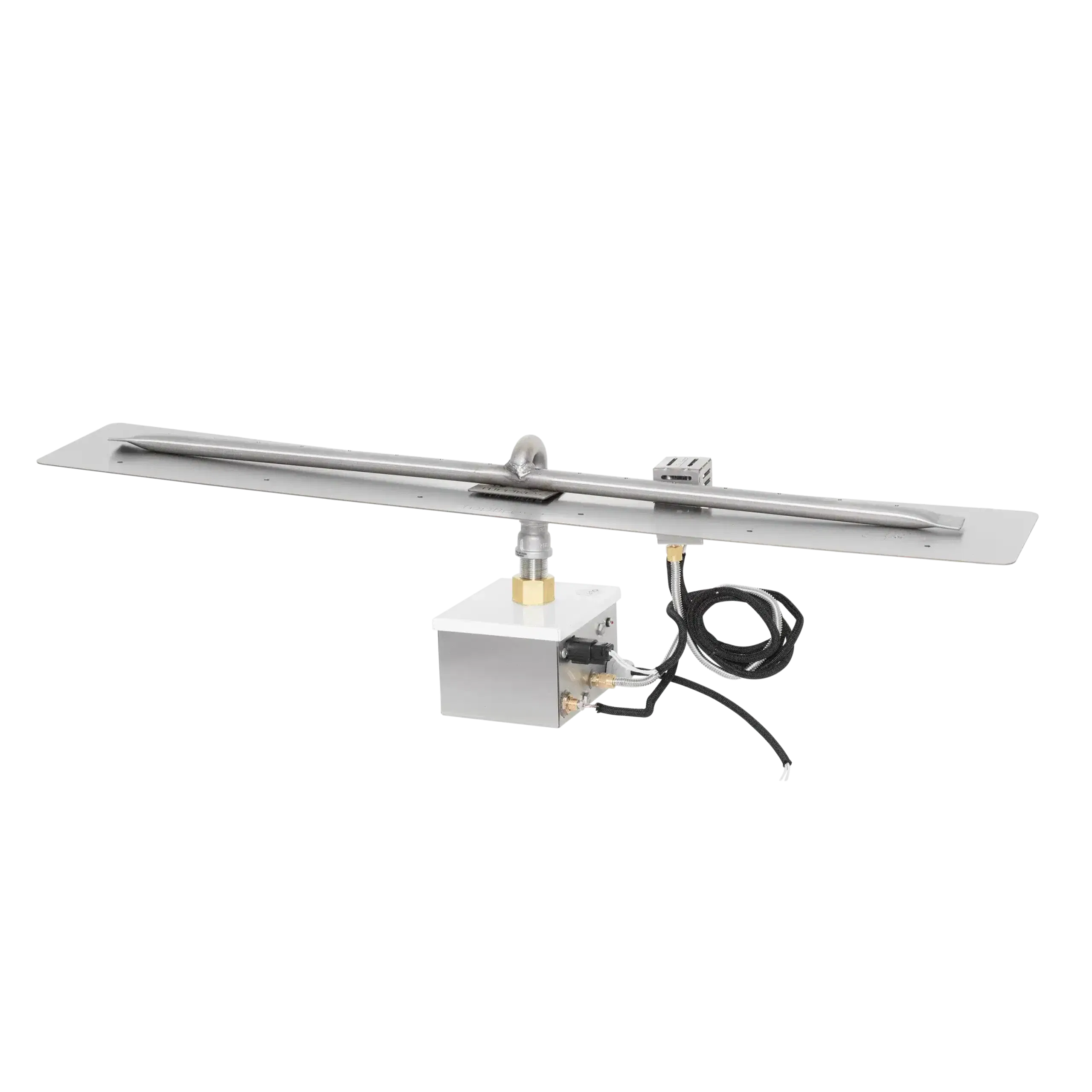

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

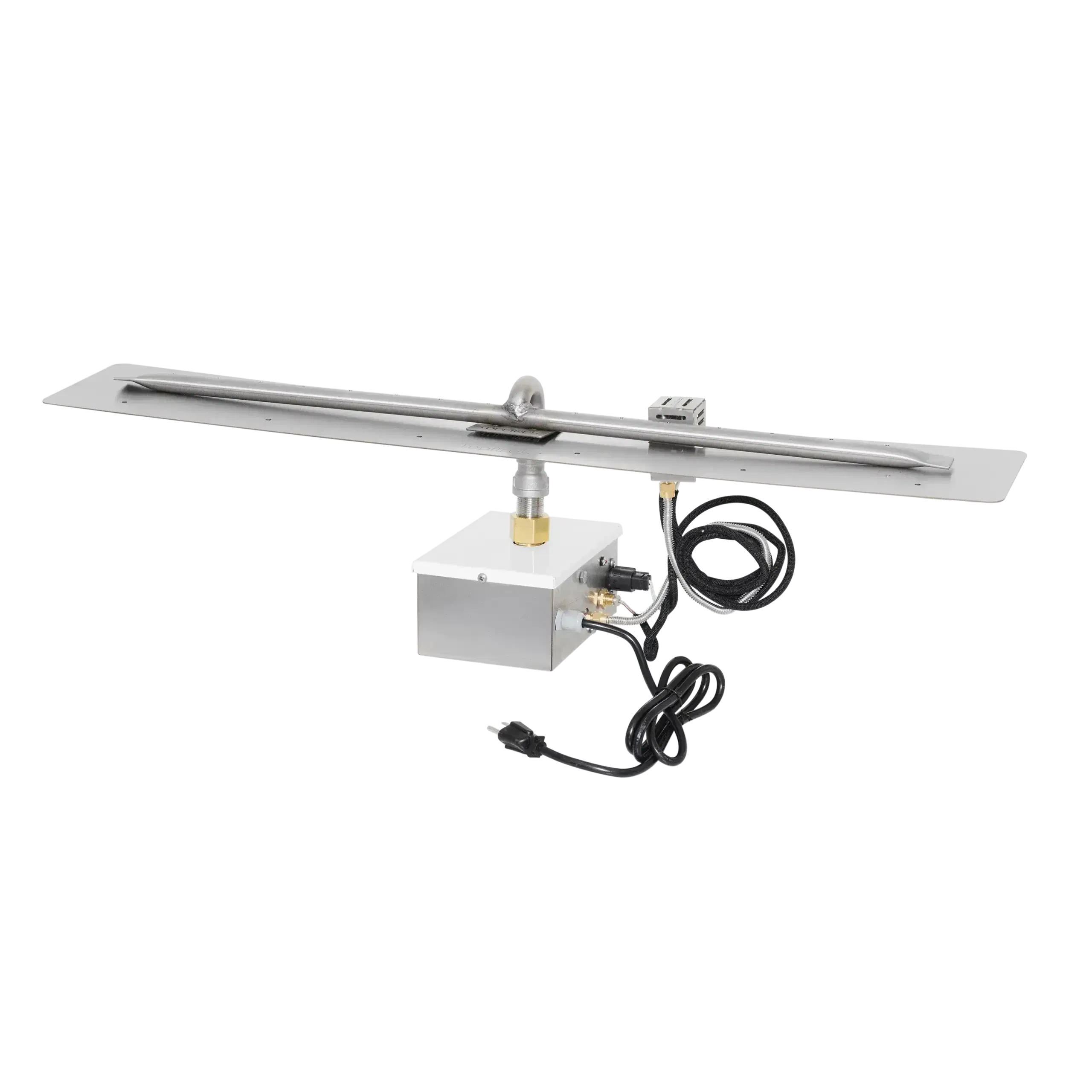

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
