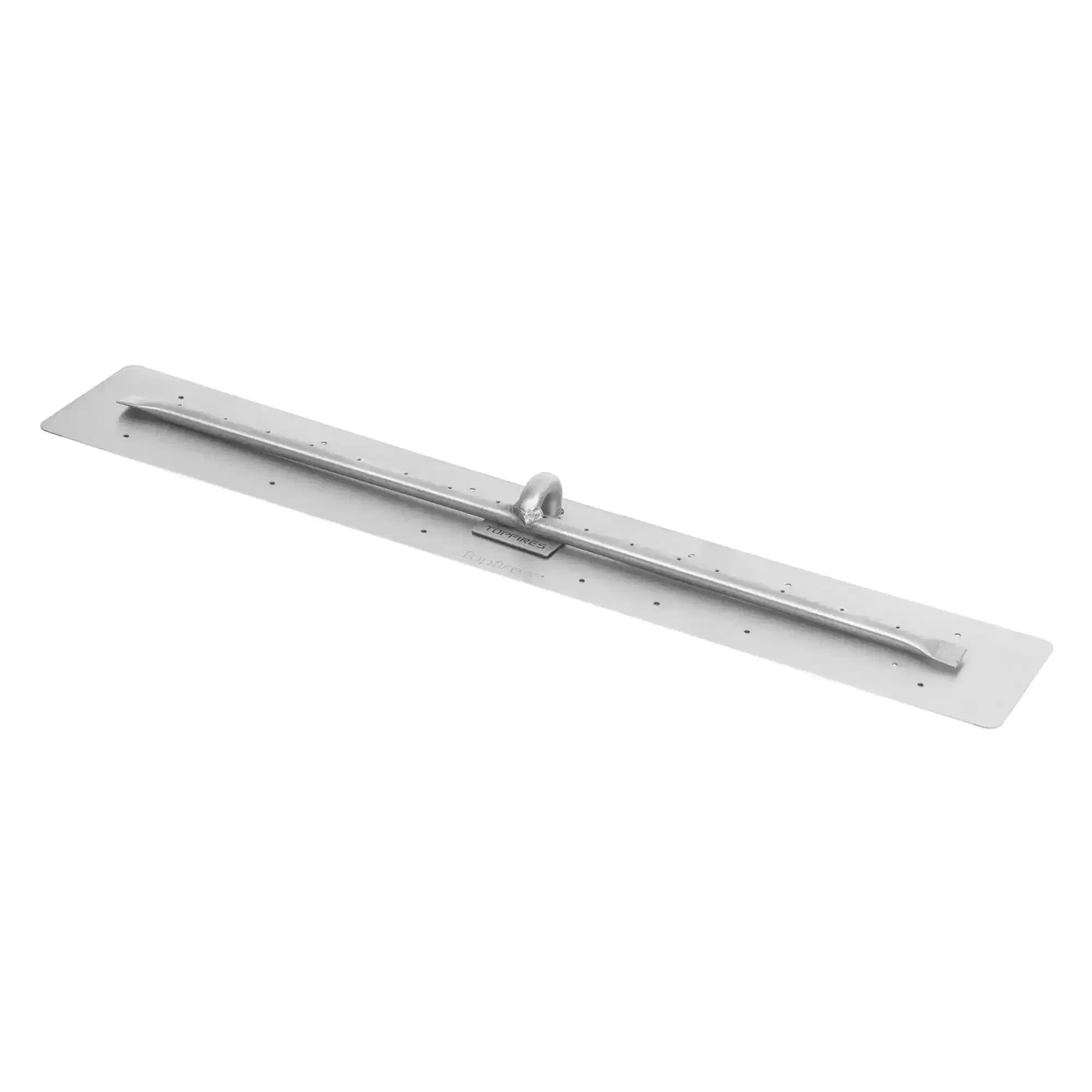

6-inch wide flat pan with linear burner: the slimmest flame line in the range, 24 to 96 inches
The Outdoor Plus 6 inch wide rectangular flat pan and linear burner is the range’s narrowest gas insert for wall caps, bar tops, or water features. Made in the USA and 24 to 96 inches long, its rimless stainless plate sits over the enclosure beneath lava rock or fire glass. One straight drilled tube runs its length for an even, thin line of flame.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. For an opening with a lip, try the 6-inch drop-in pan with linear burner that rests on it. The 6 inch linear burner set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Flat Pan and Linear Stainless Steel Burner – Specification Sheets
SKU: OPT-REFS624 | OPT-REFS630 | OPT-REFS636 | OPT-REFS642 | OPT-REFS648 | OPT-REFS660 | OPT-REFS672 | OPT-REFS684 | OPT-REFS696
| Size | 24″ x 8″, 24″ x 6″, 30″ x 8″, 30″ x 6″, 36″ x 8″, 36″ x 6″, 42″ x 8″, 42″ x 6″, 48″ x 8″, 48″ x 6″, 60″ x 8″, 60″ x 6″, 72″ x 6″, 72″ x 8″, 84″ x 6″, 84″ x 8″, 96″ x 6″, 96″ x 8″ |
|---|---|
| Ignition Type | Pan & Burner Only (Match Lit), Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
Who should pick the 6-inch wide pan over a wider one?
Anyone building into a narrow wall, parapet or slim table top. The 6-inch flat pan is the tightest rectangular footprint TOP makes, and the stainless linear burner still runs a continuous line of flame from 24 up to 96 inches long. The spec sheets cover both 6-inch and 8-inch widths.
What are the SKUs and lengths for this linear set?
OPT-REFS624 through OPT-REFS696 — nine lengths at 24, 30, 36, 42, 48, 60, 72, 84 and 96 inches. That 30 and 42-inch granularity is handy when the opening is already framed and you need the pan to fit the masonry, not the other way around.
Does it come ready for match lit, or do I need electronics?
Your choice. The base OPT-REFS set is pan and burner only for match lighting, and the same pan can be ordered with Flame Sense match lit (LC certified), Flame Sense with Spark, Low Voltage Electronic (CSA certified) or Plug and Play (CSA certified) if you want push-button convenience.
How do you light a gas fire pit like this?
On the match lit version: open the key valve slightly, touch a long lighter or fireplace match to the linear burner, then adjust flame height at the valve. Electronic versions light from a switch or button. Always light promptly after opening the valve so gas never pools under the media.
Is this a realistic DIY route to a linear fire feature?
It is the engineered shortcut. Rather than fabricating a pan and drilling your own burner, you frame the enclosure, drop this 6-inch stainless assembly in place, and add media — the approach behind every custom gas fire pit we sell. Leave the gas connection to a licensed professional.
Is the OPT-REFS burner ordered for natural gas or propane?
Either — each OPT-REFS set is built to order for natural gas or liquid propane, selected at purchase. Tell your installer which fuel before ordering, since orifice sizing and hookup differ and the burner is not meant to be swapped between fuels in the field.
What happens if the pan gets rained on?
Nothing dramatic — the stainless flat pan and linear burner are made to live outdoors. Let a soaked burner dry before lighting, since water in the ports makes the first minutes sputter. A cover keeps debris out of the 6-inch media channel between uses.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

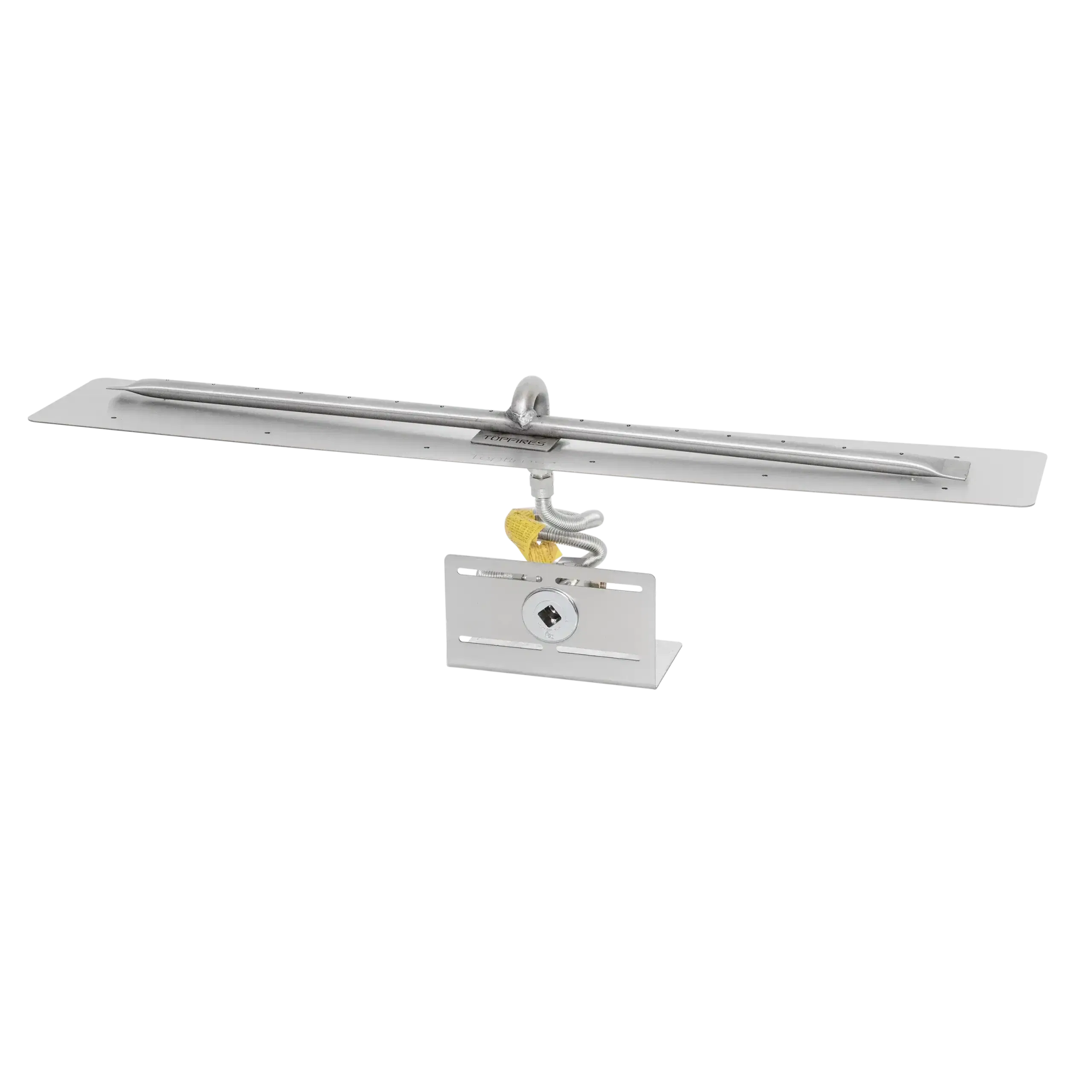

Match Lit
The simplest system — light the burner by hand. No power needed.

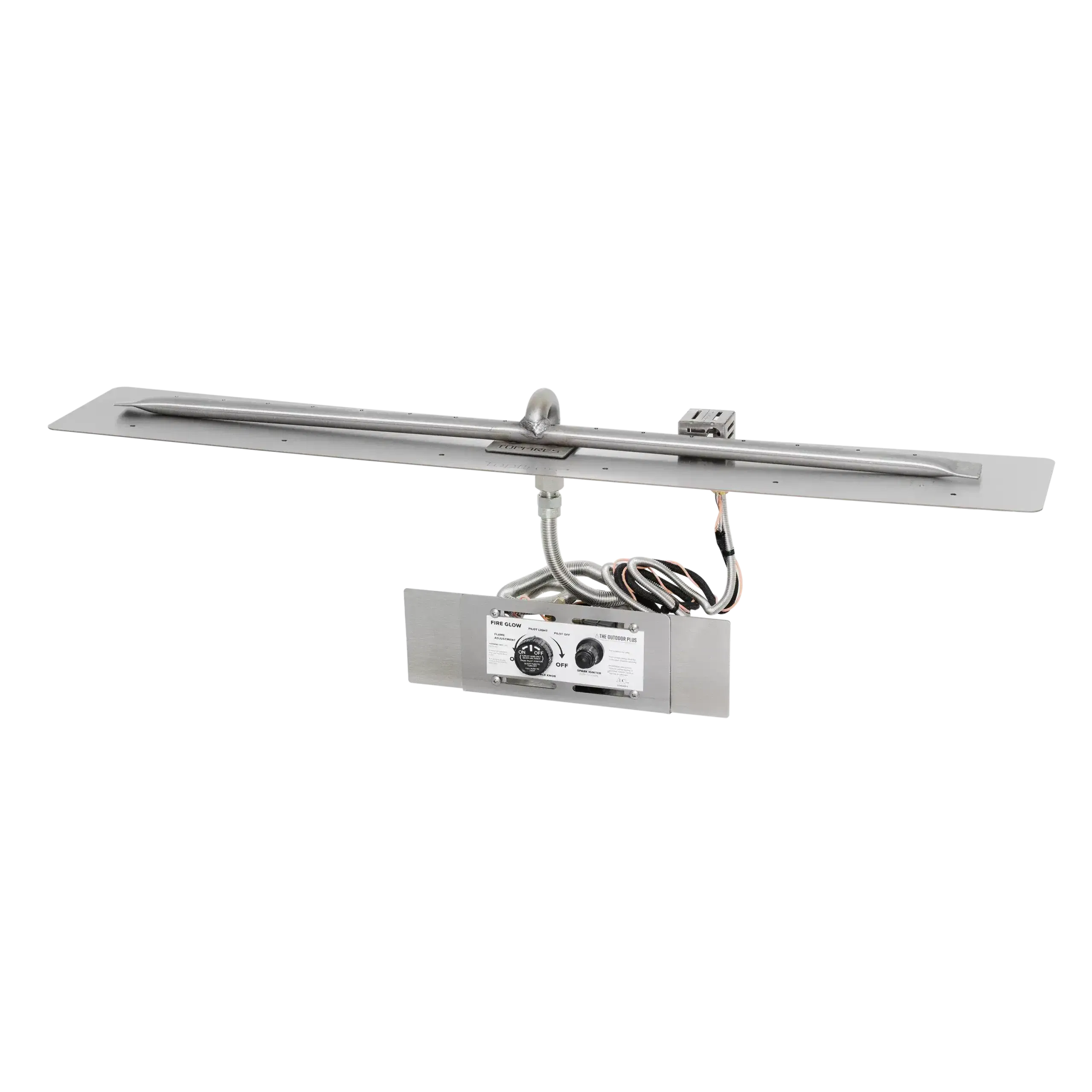

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

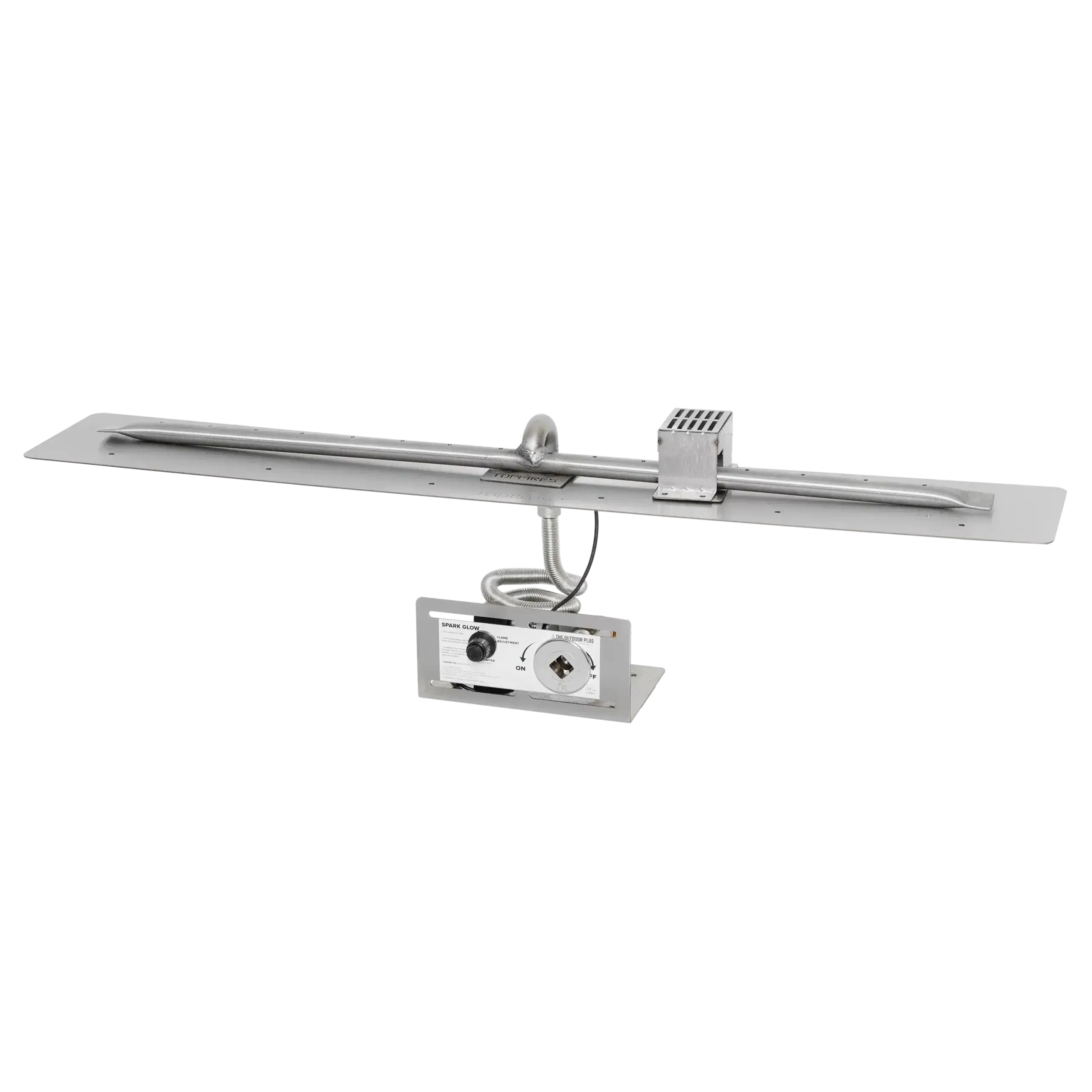

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

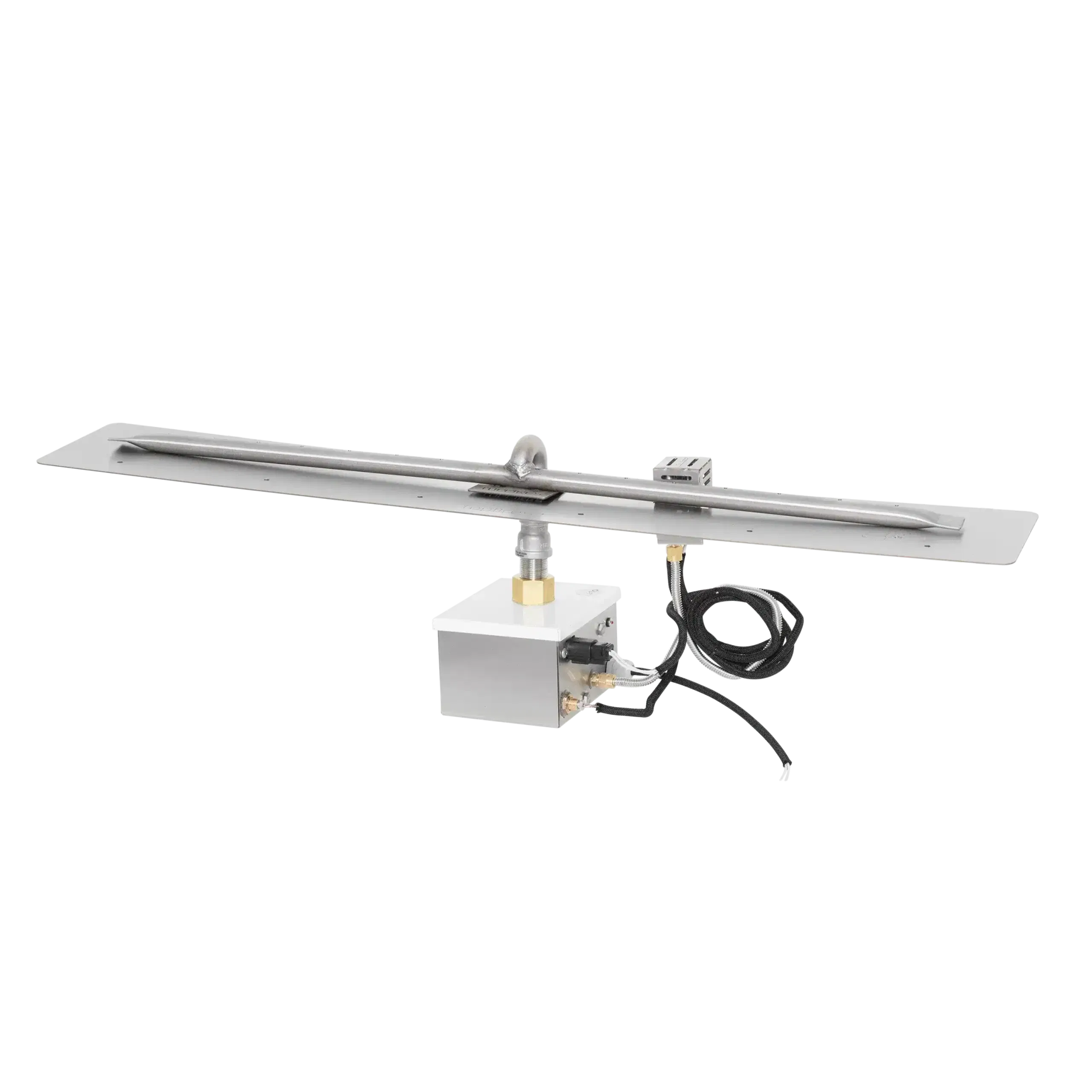

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

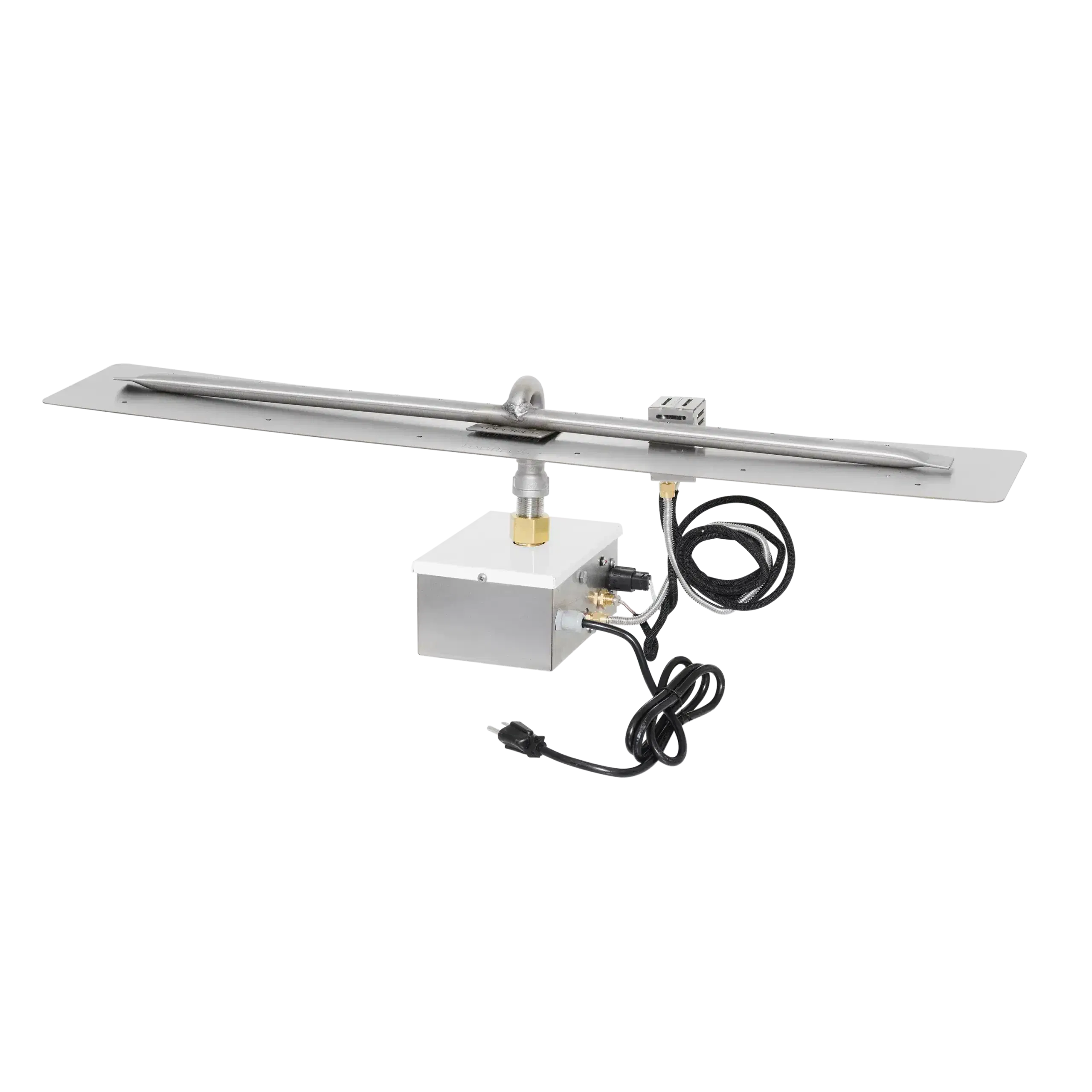

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
