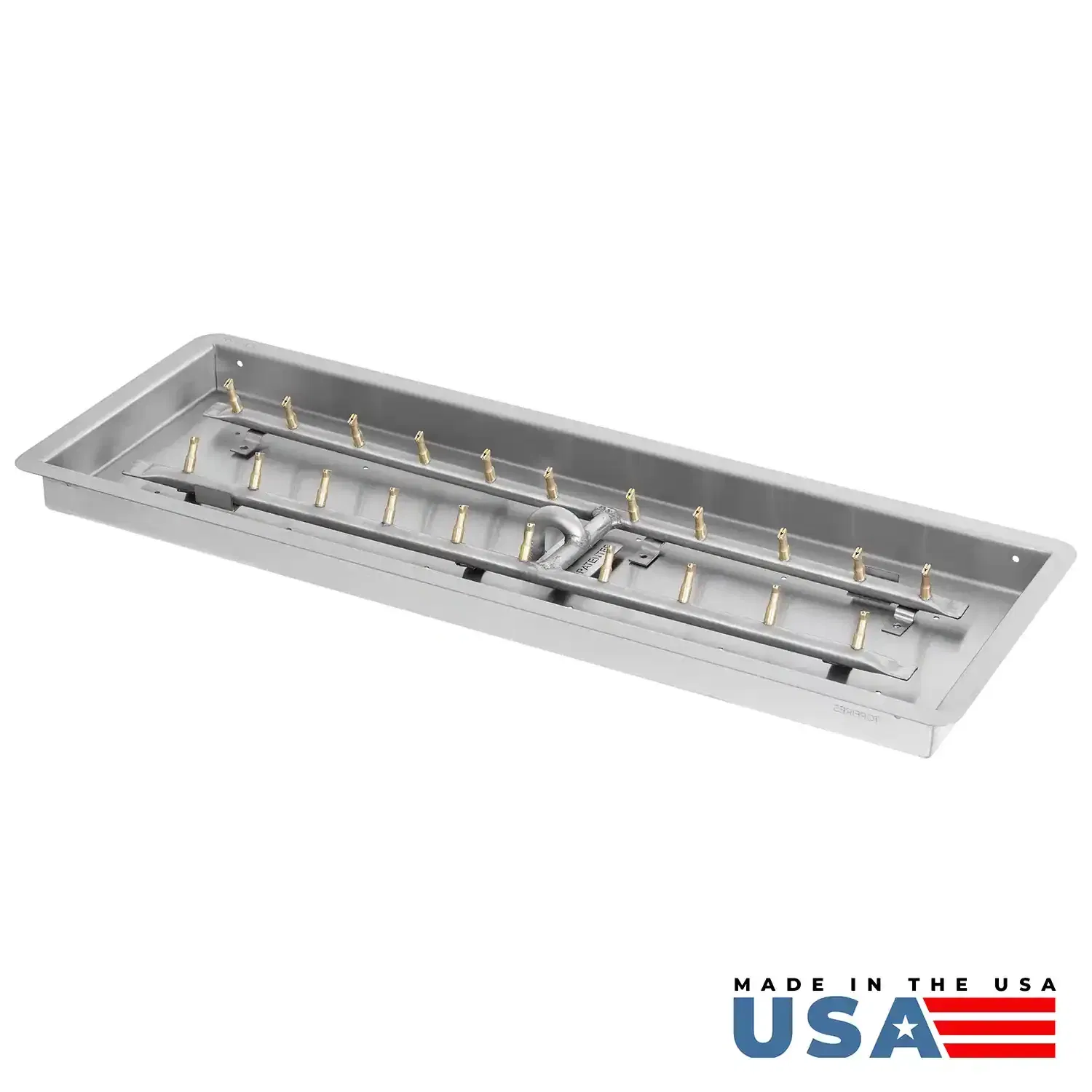

12-inch wide drop-in pan with brass H bullet burner: brass ports on two long tubes, 24 to 96 inches
The Outdoor Plus 12 inch wide rectangular drop-in pan and brass H bullet burner fits long fire pits with lipped openings. Made in the USA, it measures 24 to 96 inches long by 12 inches wide. The stainless pan rests on its lip inside the enclosure, holding lava rock or fire glass. Two long tubes joined in the middle like an H carry rows of upright brass bullet ports for taller, fuller flames than drilled tubes.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. Happy with stainless ports? The 12-inch drop-in pan with stainless H bullet burner costs less. The 12 inch brass H bullet set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Drop In Pan and H Bullet Burner – Spec Sheets
SKU: OPT-BP1224RD | OPT-BP1236RD | OPT-BP1248RD | OPT-BP1260RD | OPT-BP1272RD | OPT-BP1284RD | OPT-BP1296RD
| Size | 24″ x 12″, 36″ x 12″, 48″ x 12″, 60″ x 12″, 72″ x 12″, 84″ x 12″, 96″ x 12″ |
|---|---|
| Ignition Type | Match Lit Ignition, Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
What does the brass H bullet burner look like when lit?
Two parallel rails of sharp brass jets running the length of the sunken 12-inch pan, joined by a crossbar — a trench of distinct flames rather than one soft ribbon. It is the burner to pick when you want the fire itself, not the media, to be the texture.
Which sizes are in this drop-in line?
Seven, from 24 by 12 inches to 96 by 12 inches: OPT-BP1224RD through OPT-BP1296RD. All share the 12-inch pan width, so scaling the feature up is purely a length decision — the cut-out detail and surround design stay the same.
Do I lock in the fuel when ordering?
Yes. Each OPT-BP1224RD-series set is built for natural gas or liquid propane per your order, and the brass H bullet burner is not intended for field conversion. Confirm the property’s fuel with your installer first; flame quality is excellent on either.
How much heat does a burner like this throw?
Output scales with length — a 96-inch double rail of bullet jets is a legitimate patio heater, while the 24-inch set is intimate. Per-size ratings live on the spec sheet. Whatever the length, seating goes outside the listed clearances and enjoys the radiant warmth from there.
Can I design a dining fire table around this pan?
Yes — the drop-in rim lets the tabletop finish flush, with the 12-inch trench of brass jets running down the centerline like the best production fire pit table designs. Leave generous table surface either side of the pan for plates and elbows.
Are marshmallows over brass jets acceptable?
Encouraged. The clean gas flame off the H bullet ports toasts marshmallows without smoke flavor, and the wide 12-inch bed gives several kids room to work at once. Keep the sticks above the jets and sugar drips off the glass, and the pan stays showroom-grade.
Could this run under a pergola or pavilion?
Only if overhead clearances and ventilation meet the spec sheet and local code — a double-rail bullet burner sends real heat straight up. Open sky is the simple answer; covered installations need the clearance math done by your gas professional before anything is built.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

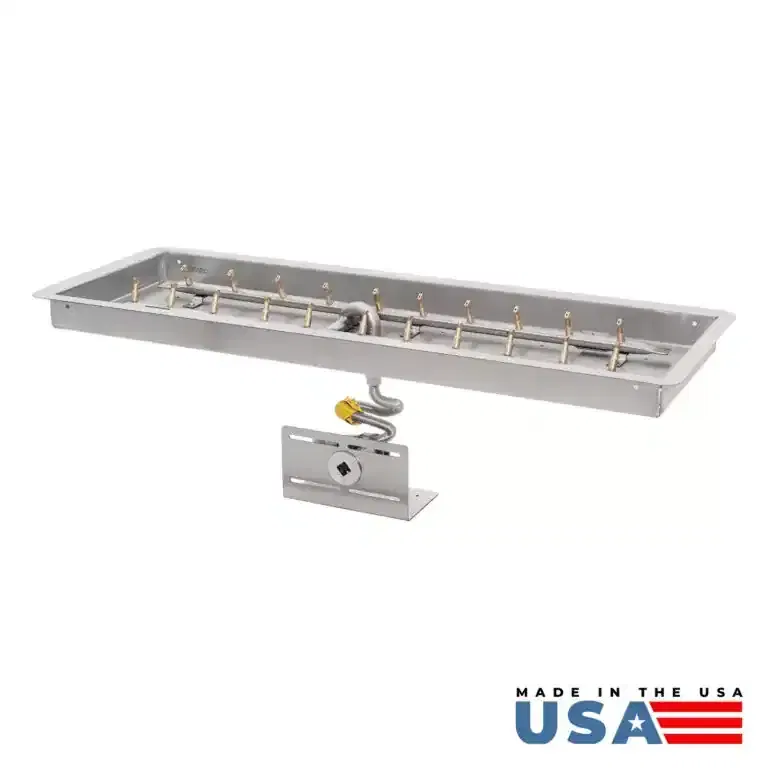

Match Lit
The simplest system — light the burner by hand. No power needed.

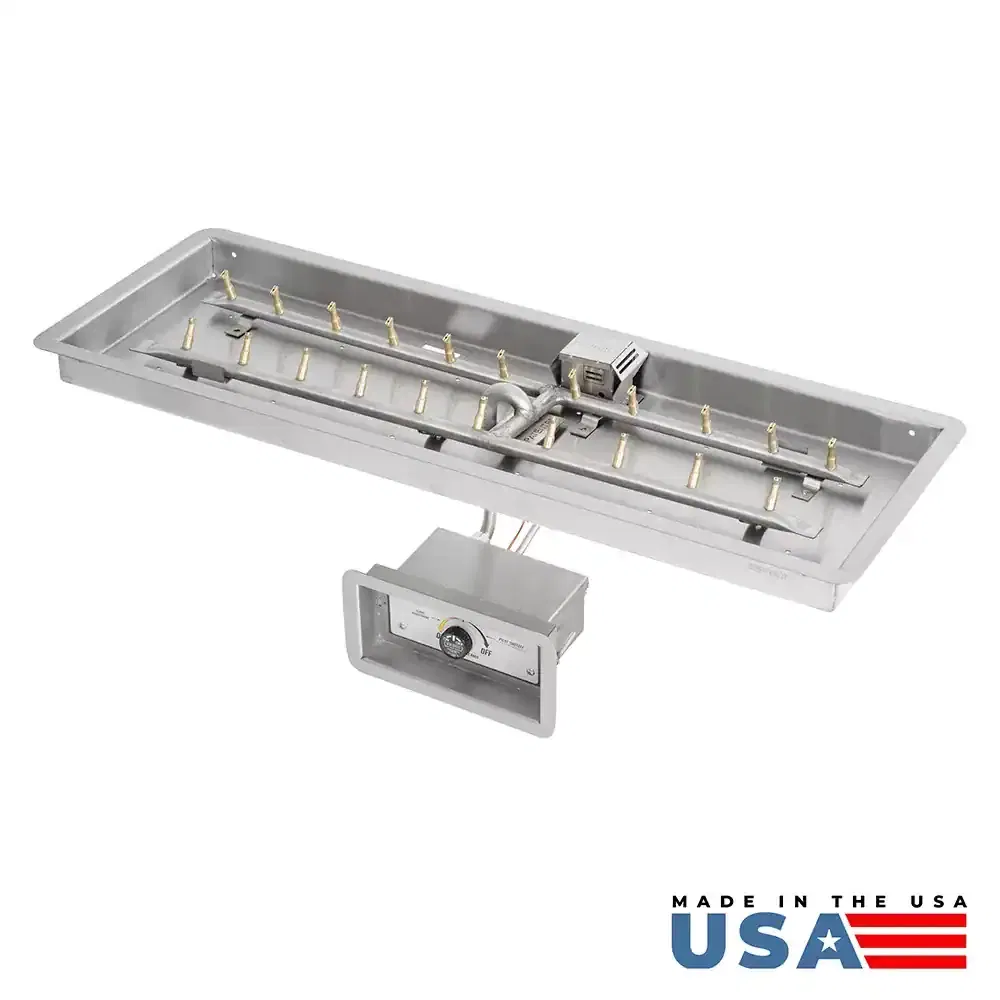

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

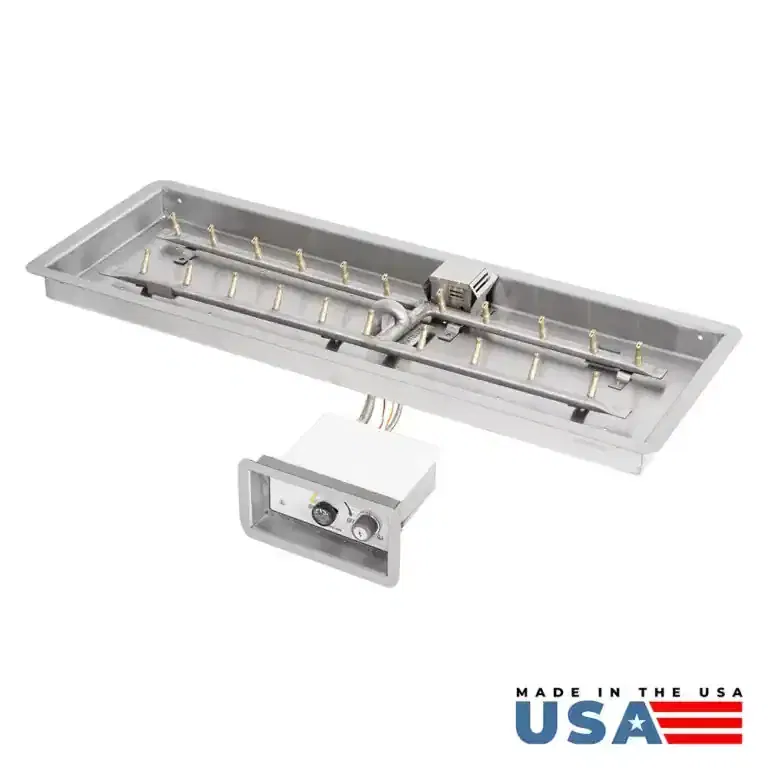

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

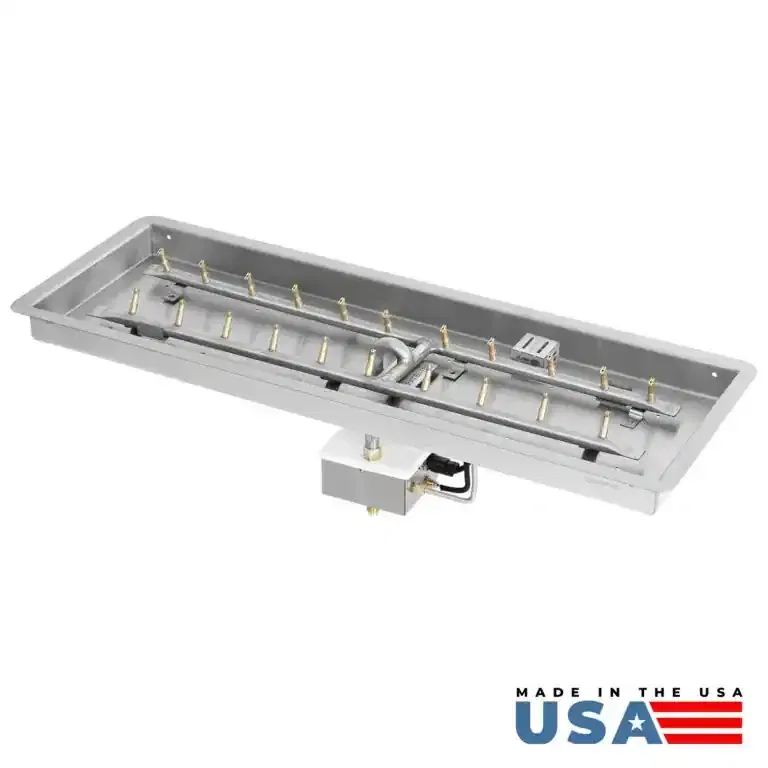

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

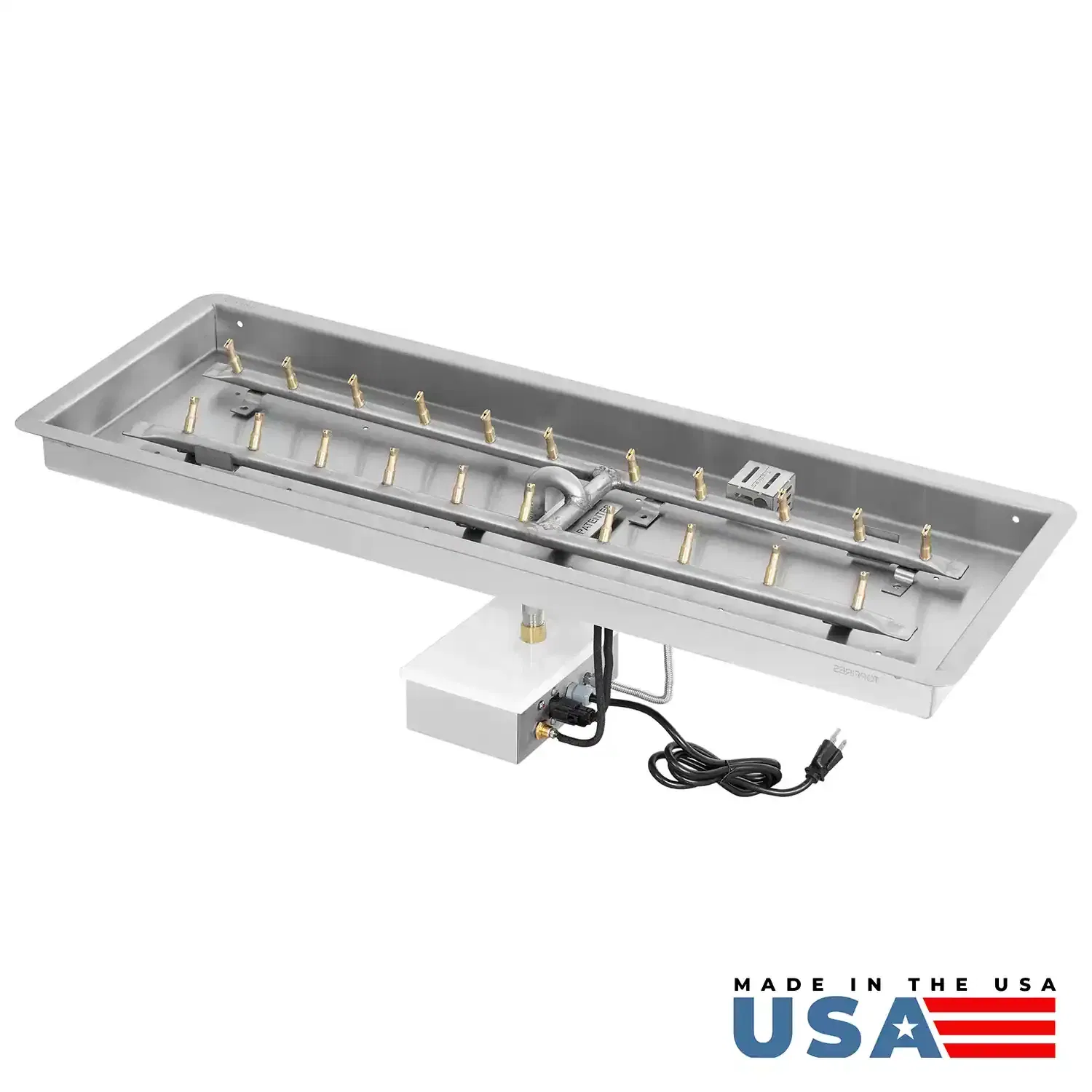

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
