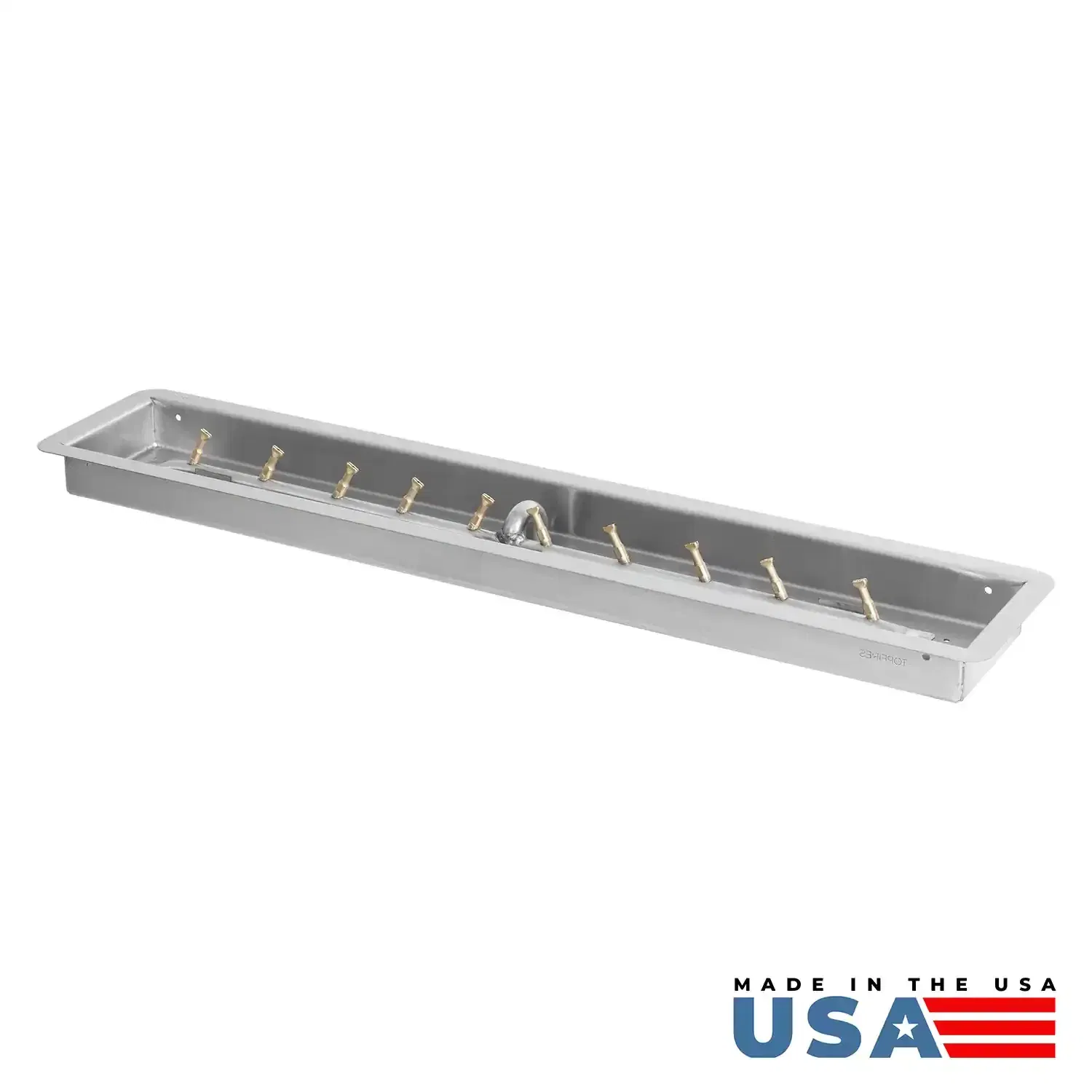

8-inch wide drop-in pan with brass linear bullet burner: a slim brass-tipped flame line, 24 to 96 inches
The Outdoor Plus 8 inch wide rectangular drop-in pan and brass linear bullet burner is a slim stainless steel trough insert. The pan rests on its lip inside your enclosure and holds lava rock or fire glass. A central straight tube has a row of upright brass bullet ports for tall flames along its full length. Made in the USA, it comes in lengths from 24 to 96 inches, all 8 inches wide.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. Want stainless ports instead? See the 8-inch drop-in pan with stainless linear bullet burner. The 8 inch brass linear bullet set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Drop In Pan and Linear Bullet Burner – Spec Sheets
SKU: OPT-BP824RD | OPT-BP836RD | OPT-BP848RD | OPT-BP860RD | OPT-BP872RD | OPT-BP884RD | OPT-BP896RD
| Size | 24″ x 8″, 36″ x 8″, 48″ x 8″, 60″ x 8″, 72″ x 8″, 84″ x 8″, 96″ x 8″ |
|---|---|
| Ignition Type | Match Lit Ignition, Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
| Materials | Brass, Stainless Steel |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
Why put a brass bullet burner in a drop-in pan?
Because the recessed 8-inch pan hides the plumbing and lets the brass bullet ports do the talking — crisp jets rising straight out of a sunken bed of glass. Brass also brings serious corrosion resistance, which matters when the burner lives down in a pan where moisture can linger.
What lengths does the OPT-BP800RD series offer?
Seven: 24, 36, 48, 60, 72, 84 and 96 inches, all 8 inches wide — OPT-BP824RD through OPT-BP896RD. No 30 or 42-inch steps in this line, so set your cut-out to one of the seven listed sizes before the countertop gets templated.
What ignition options ship with it?
Match Lit, Match Lit with Flame Sense (LC certified), Flame Sense with Spark, Low Voltage Electronic (CSA certified) or Plug and Play (CSA certified). The choice is baked into the pan at the factory, so decide between key-valve simplicity and push-button ignition before ordering.
Will the brass change color outdoors?
It may mellow and darken slightly with heat and weather — what it will not do is rust or pit the way lesser metals can. Since the burner sits below fire glass in the recessed pan, most of what you see is flame anyway; the brass is there for longevity, not looks.
How would I build a propane fire pit around this set?
Order it built for liquid propane, frame an enclosure with tank ventilation or a buried LP line, cut the opening and rest the pan on its rim — the standard skeleton of a scratch-built gas fire pit. A licensed gas professional makes and tests every connection.
Should the fire glass cover the brass ports?
No — fill the recessed pan to just under the bullet tips so the ports fire above the media line. That is the whole trick of the design: buried ports lose the sharp jetted look and can sputter. An 8-inch channel needs less glass than you would guess.
Is rain on the open pan a problem?
Not structurally — brass and stainless both shrug it off. A drop-in pan can collect water in a downpour though, so give the OPT-BP824RD a drying burn afterward and consider a cover between uses. Persistent standing water is a drainage-design question for your builder.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

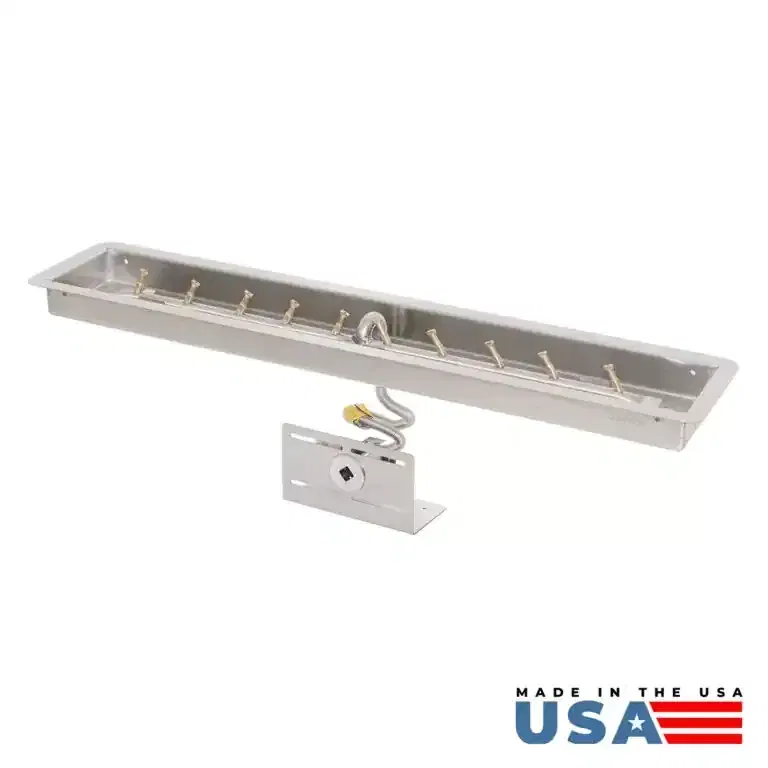

Match Lit
The simplest system — light the burner by hand. No power needed.

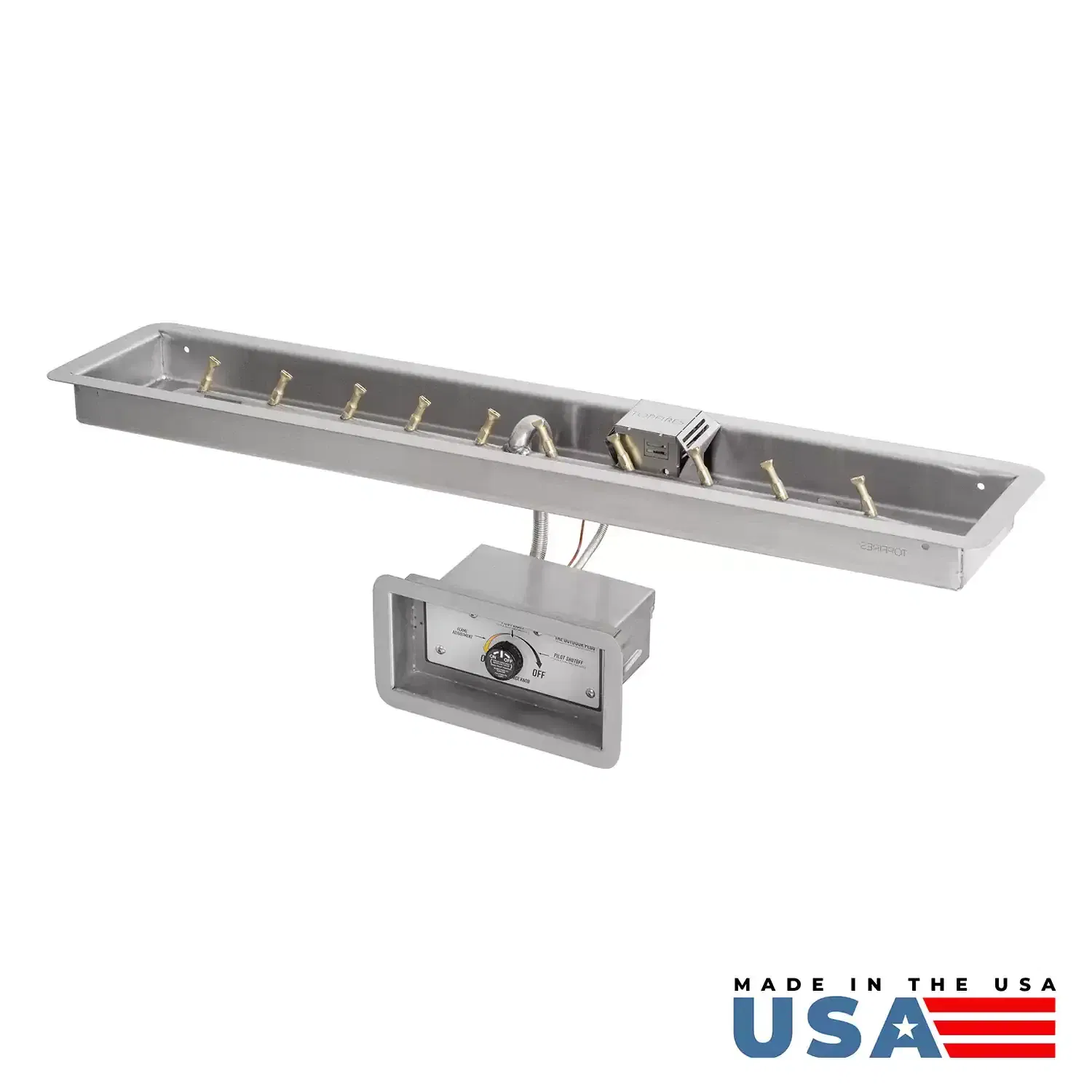

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

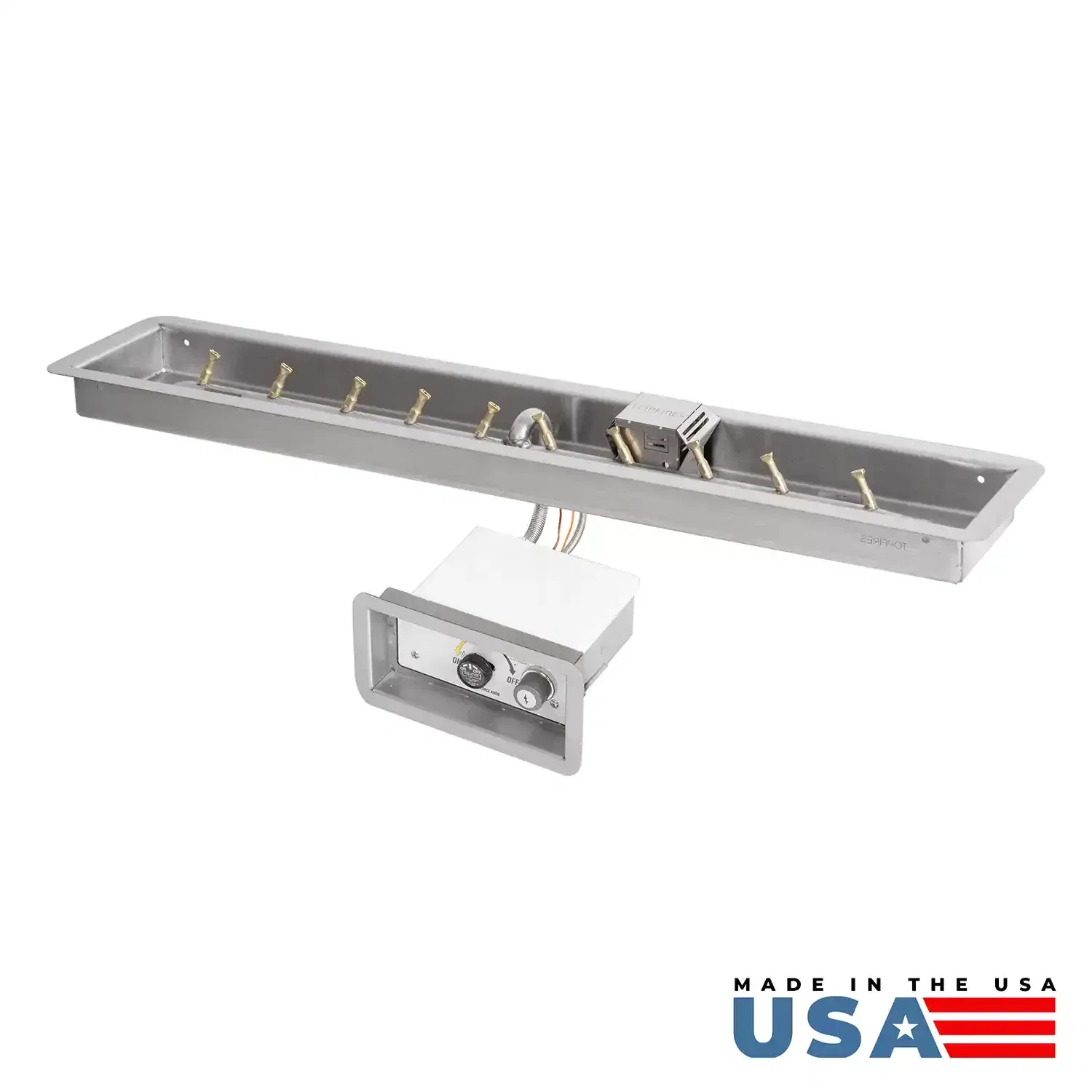

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

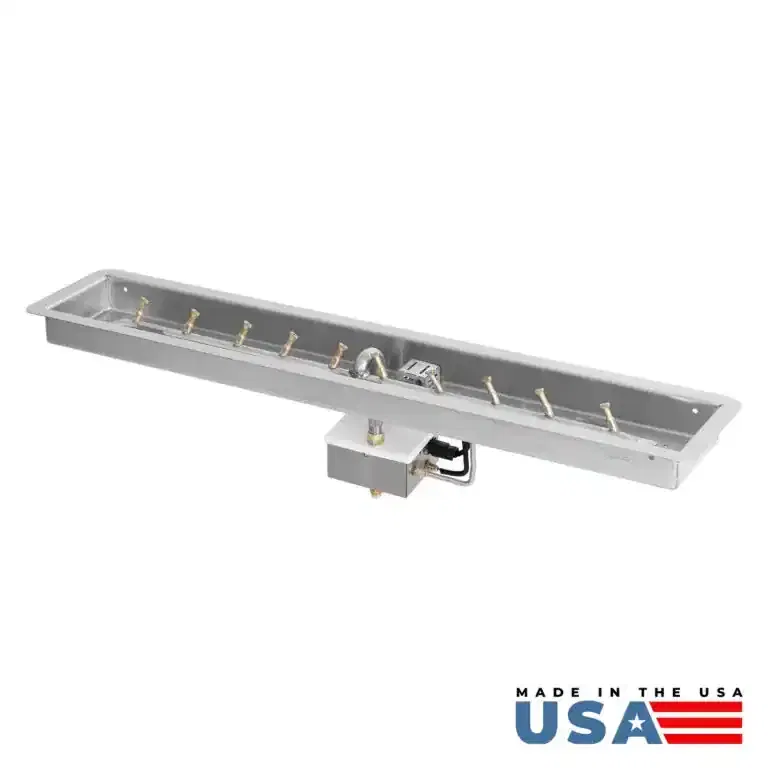

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

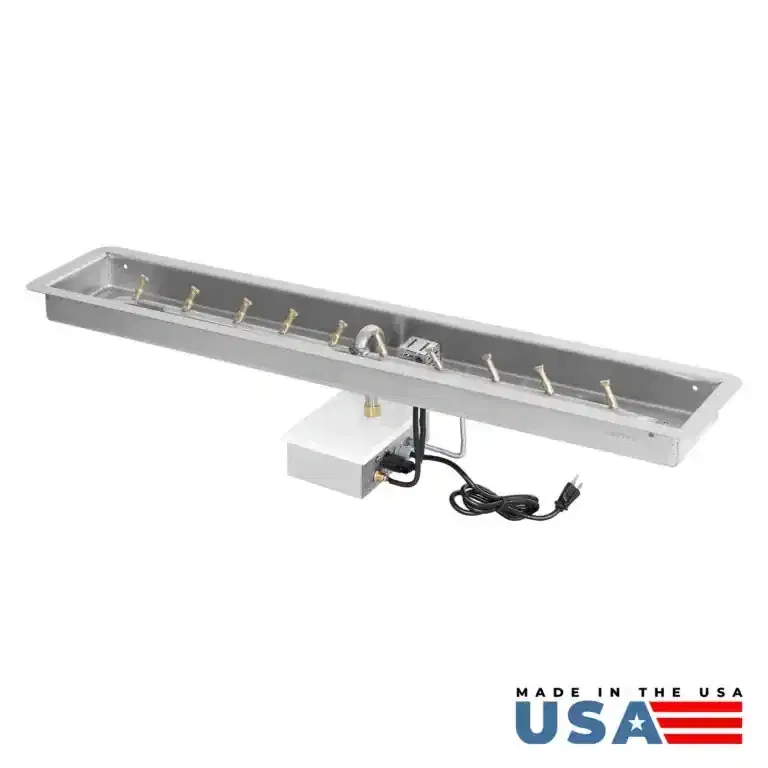

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
