12-inch wide raised lip drop-in pan with H burner: a stainless border that stands above the stone, 24 to 96 inches
The Outdoor Plus 12 inch wide rectangular raised lip drop-in pan and H burner frames a linear fire pit with a finished stainless steel border. Its wide lip supports the pan above your enclosure’s surface, keeping the border visible. Two long drilled tubes join centrally in an H for even flames along both sides. Made in the USA in 24, 30, 36, 42, 48, 60, 72, 84, or 96 inch lengths.
Order it for natural gas or propane. Light it with a match, or add electronic ignition and start it with a button. Prefer no visible metal? The 12-inch lipless drop-in pan with H burner sits flush. The 12 inch raised lip H burner set ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
Specifications
Raised Lip Rectangular Drop in Pan & SS H Burners – Specification Sheets
SKU: OPT-RLRCT2412 | OPT-RLRCT3012 | OPT-RLRCT3612 | OPT-RLRCT4212 | OPT-RLRCT4812 | OPT-RLRCT6012 | OPT-RLRCT7212 | OPT-RLRCT8412 | OPT-RLRCT9612
| Size | 24″ x 12″, 30″ x 12″, 36″ x 12″, 42″ x 12″, 48″ x 12″, 60″ x 12″, 72″ x 12″, 84″ x 12″, 96″ x 12″ |
|---|---|
| Ignition Type | Pan & Burner Only (Match Lit), Match Lit with Flame Sense Ignition (LC Certified), Flame Sense With Spark Ignition, Low Voltage Electronic Ignition (CSA Certified), Plug and Play (CSA Certified) |
Manuals
Manuals
Catalogs
2024 PRODUCT CATALOG
BOWL CATALOG
Pan & Burner Catalog
Ready To Finish Catalog
Fire Sculptures Catalog
The Williams collection
FAQ
Why pair the raised lip pan with an H burner?
Width plus containment. The H spreads flame across the full 12-inch bed the way a single tube cannot, and the raised lip fences all that media above the surface. The combination suits big furniture-style features where scattered fire glass on the tabletop is not an option.
What is the size and SKU range?
Nine lengths from 24 by 12 to 96 by 12 inches: OPT-RLRCT2412 through OPT-RLRCT9612, including the 30, 42 and 60-inch intermediates. One pan width across the whole run keeps the surround detail identical whatever length you choose.
What do I get in the box?
The stainless raised-lip pan with its matched H burner as one assembly, in your chosen length, plus the ignition hardware for whichever tier you order — up to CSA-certified Plug and Play. Media, enclosure and the gas run are supplied by you and your installer.
How much warmth does the 12-inch H put out?
Enough that the feature doubles as patio heating — flame along both rails radiates across a wide arc, scaling with the length ordered. The spec sheet carries per-size ratings. Seat guests just beyond the listed clearances and the H burner keeps the evening going after sunset.
What is the realistic path from parts to finished fire pit?
Pick your OPT-RLRCT length, build or buy an enclosure to suit, cut the opening, seat the pan — its raised lip trims the edge — and add media. That is the entire recipe behind a custom gas fire pit; a licensed gas fitter connects and leak-tests the fuel side.
How is it lit day to day?
Match lit versions light with a long lighter at the H rail after cracking the key valve; Flame Sense, Low Voltage Electronic and Plug and Play versions light from their controls and supervise the flame for you. Whichever tier, open gas only when you are ready to light.
S’mores over the raised lip pan — workable?
Very — the lip actually helps, giving marshmallow drips a wall to stay inside instead of wandering onto your table finish. The clean H-burner flame toasts without smoke. Sticks above the flame tips, sugar cleaned off the glass once cool, and the 12-inch bed stays pristine.
Burner Tech
Made in the USA · Patented Design
The Bullet Burner
Where Design Meets Expectations
Every The Outdoor Plus fire feature starts with the burner — and no one takes it more seriously. The patented Bullet Burner is designed and built in Ontario, California for one purpose: premium fire performance. Its Flat Flame Technology delivers more flame while using less gas, producing the tall, full, realistic flame The Outdoor Plus is known for.
Patented Bullet TipsFlat Flame TechnologyMade in the USA
How Does It Work?
Engineered Flame, Piece by Piece
Hexagonal Uniform Gas Flow Hub
The patented brass hub gathers the perfect air-and-fuel mixture and safely distributes it to every arm of the burner, so the flame stays even across the entire fire feature.
Precision Bullet Burner Tips
Each brass tip meters the mixture for those beautiful, realistic flames — and is built to withstand harsh weather, extreme temperatures, and high impact.
Flat Flame Technology
The patented orifice design gives you exceptional flame coverage from less gas. What you see is what you get — a fuller fire at a lower burn rate.
Find Your Shape
Seven Burner Shapes, Two Metals
RoundSquareLinear“H”SwitchbackTriple ‘S’Lotus
Every shape is available in marine-grade Stainless Steel — or upgrade to solid Brass Bullet Burners for maximum longevity in coastal and poolside installations. All burners run on Natural Gas or Liquid Propane.
Building a Custom Fire Feature?
Choose Your Pan & Burner Kit Style
A pan & burner kit is the heart of a built-in fire pit or fire table: the pan drops into your enclosure, holds the fire media, and houses the burner. The four pan styles differ in how they sit in the enclosure — and in the finished look they create.
Raised Lip Drop-In
The pan drops into the opening while its lip stands proud of the surface, framing the fire media and keeping water and debris from washing into the pan.
Best for: classic fire pit look with extra protectionDrop-In
The workhorse. A recessed pan with a slim lip that rests on the enclosure — quick to install, with a deeper bed that holds a generous layer of lava rock or fire glass.
Best for: most DIY & contractor buildsLipless Drop-In
No visible lip at all — the pan finishes flush with the surrounding surface for a seamless, architectural edge where only fire and media are visible.
Best for: modern & luxury designsFlat Pan
A shallow flat surface that spans the opening, spreading fire media edge-to-edge for the widest fire presentation with the least media — great for long, linear flames.
Best for: linear fire tables & wide flame beds Light It Your Way
Five Ignition Options

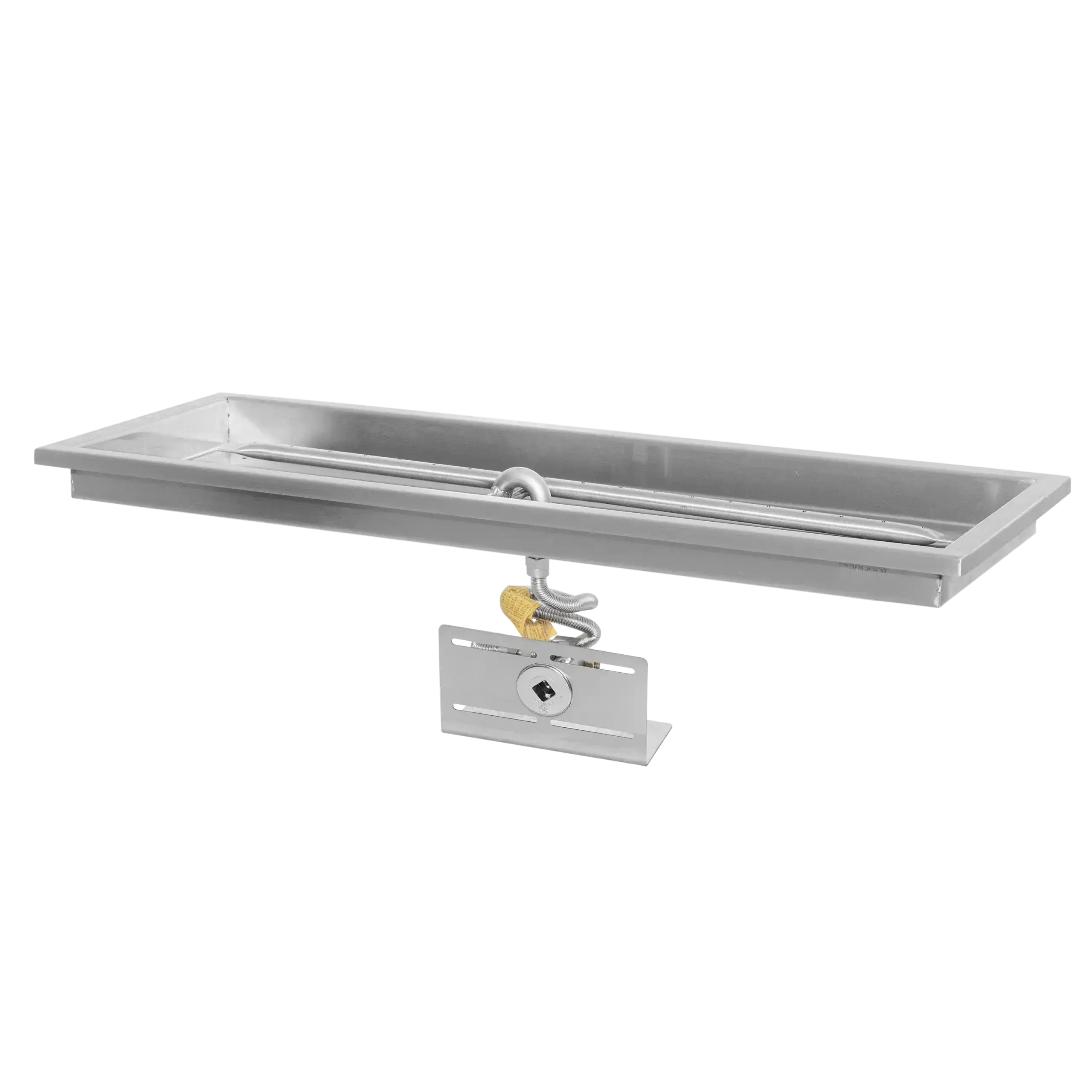

Match Lit
The simplest system — light the burner by hand. No power needed.

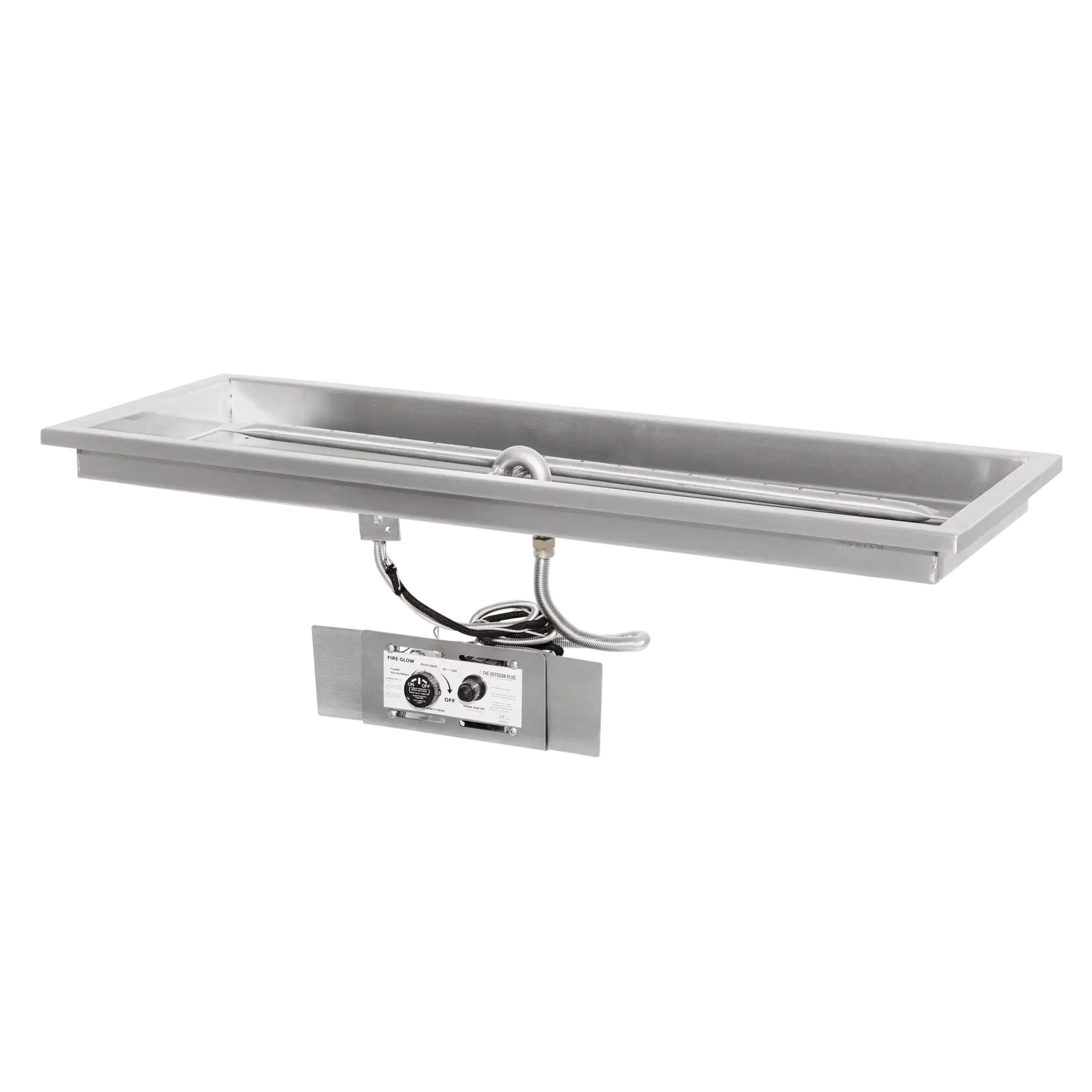

Match Lit + Flame Sense
Manual lighting with a safety pilot that shuts gas off if the flame goes out.

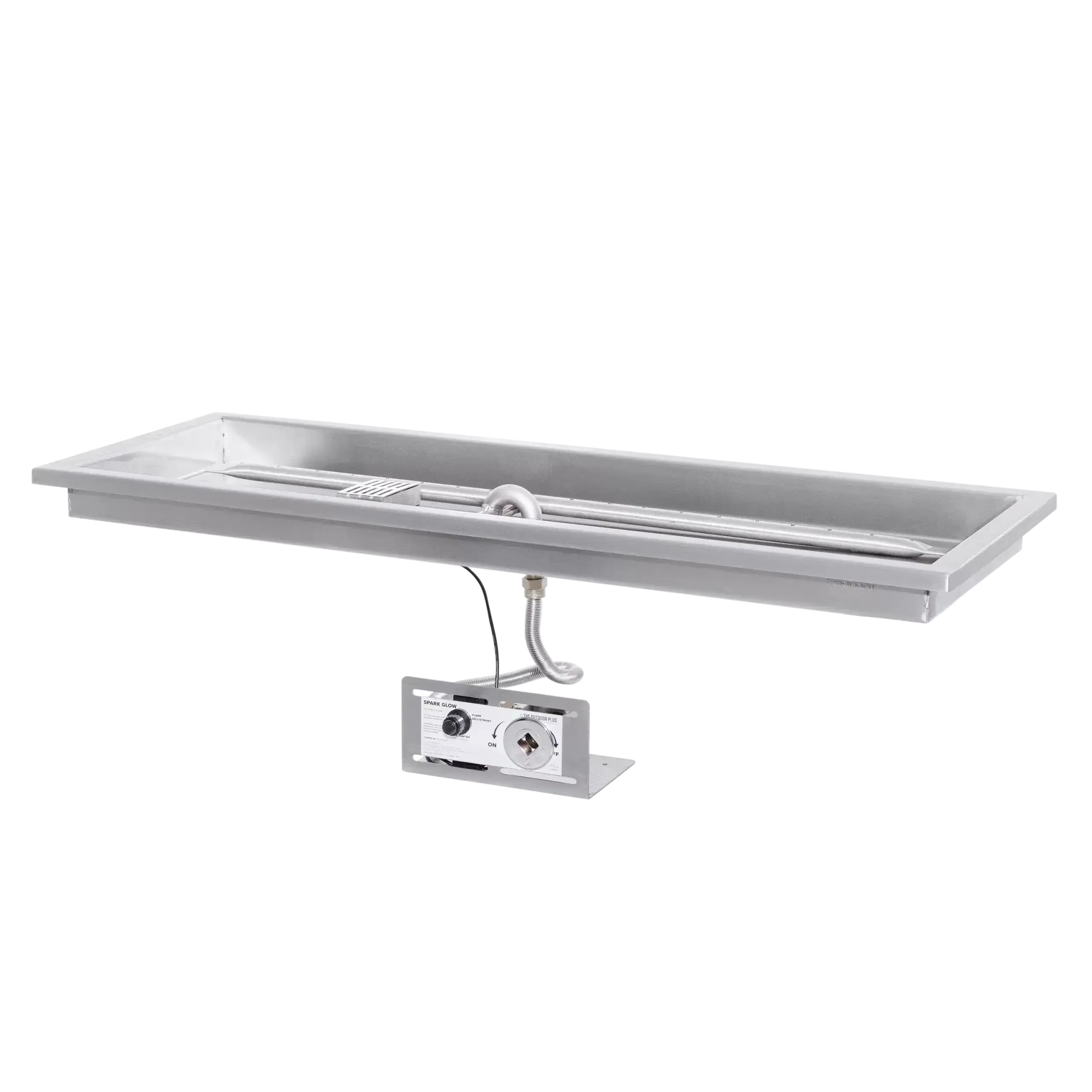

Spark + Flame Sense
Push-button spark ignition with automatic flame monitoring.

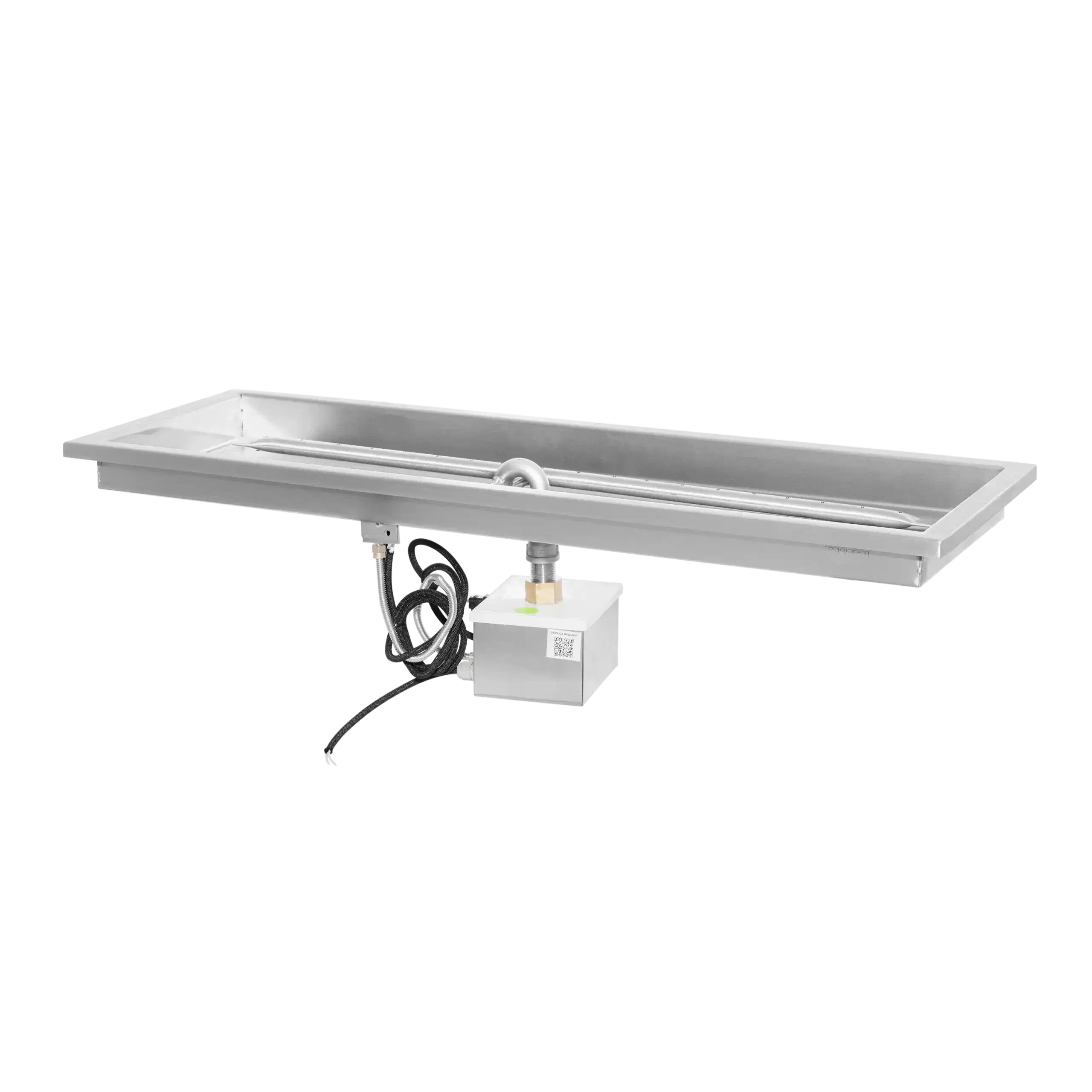

12V Electronic
Low-voltage electronic ignition — wire it to a switch, timer, or home automation.

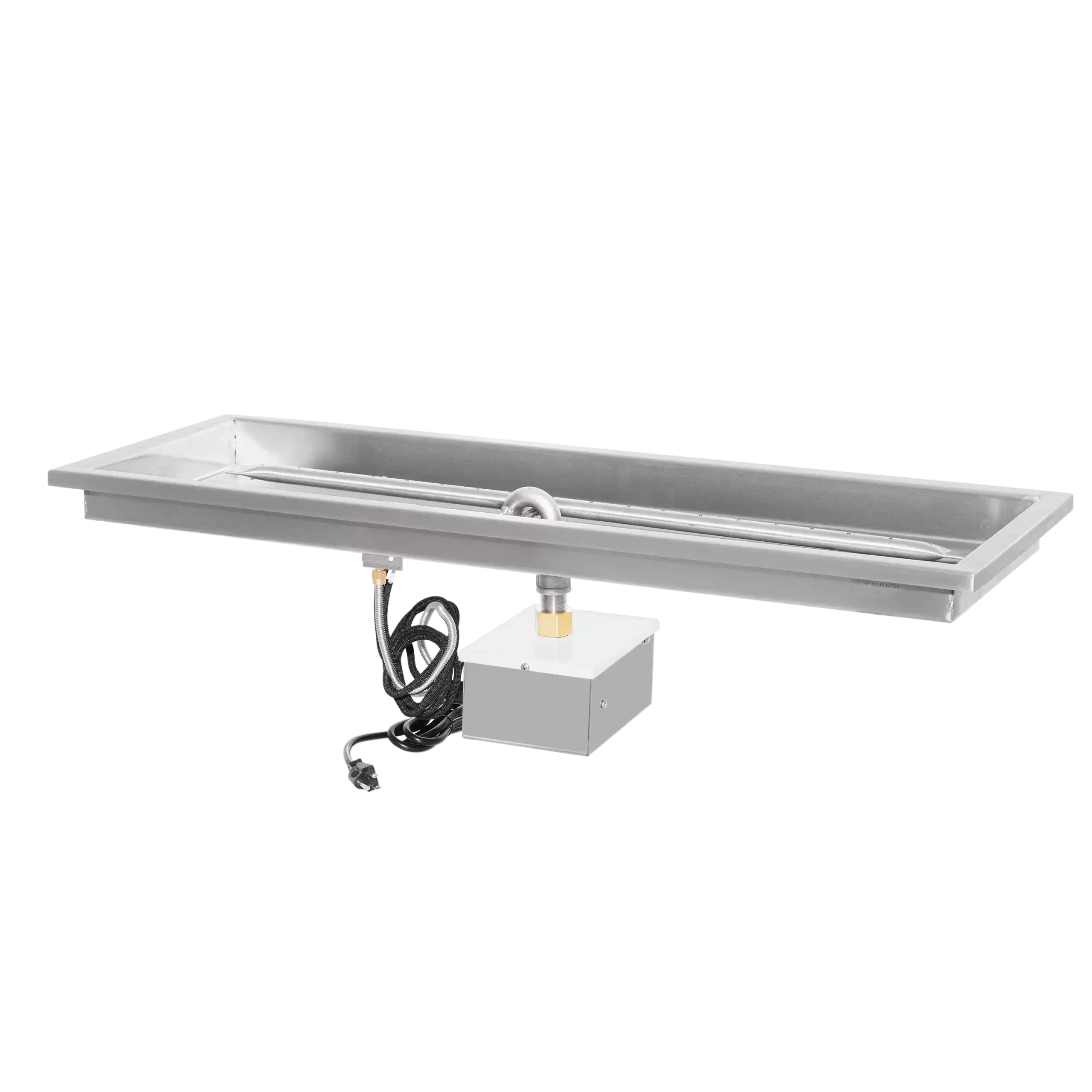

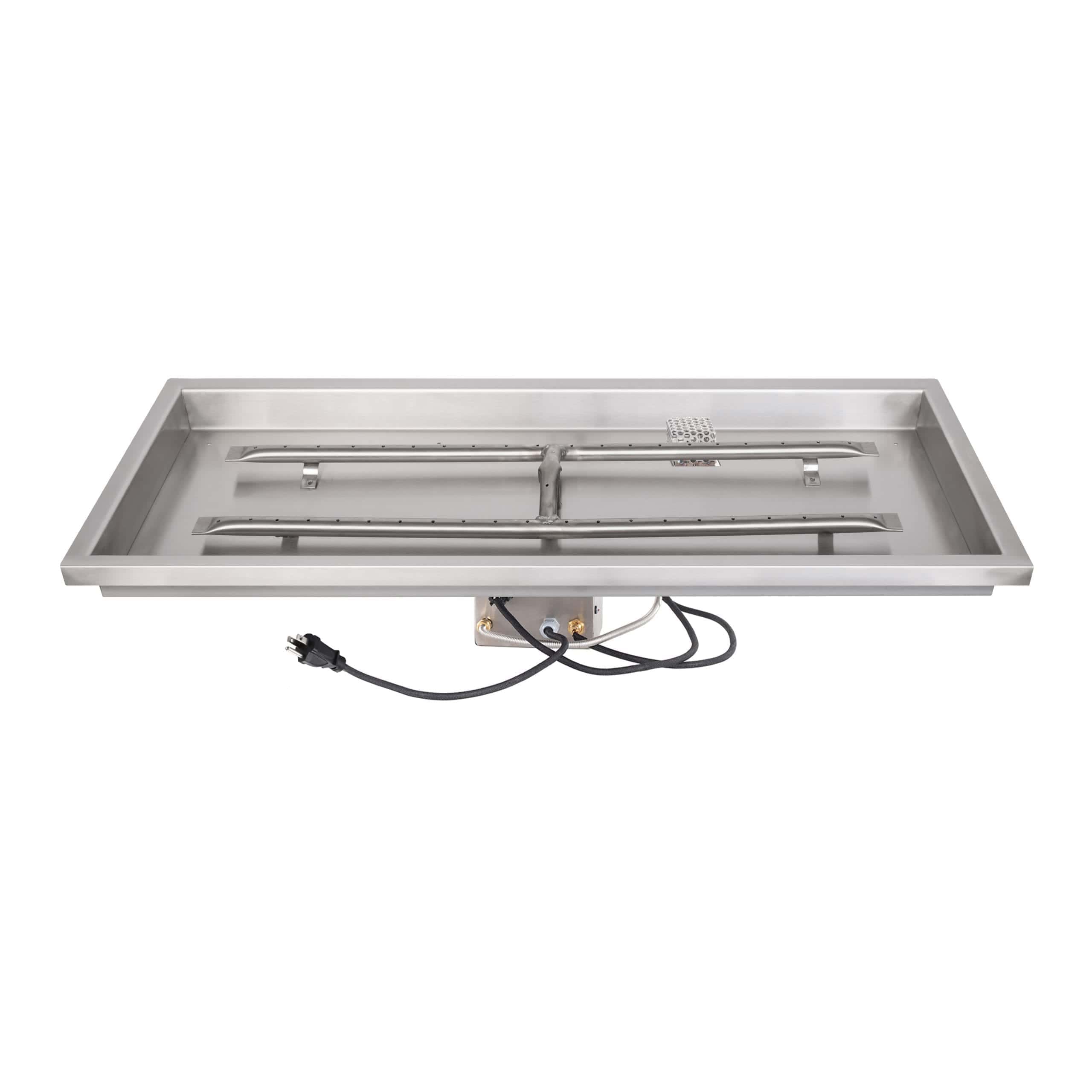

110V Plug & Play
Plug into a standard outlet and go — the easiest electronic option to retrofit.
NG & LP compatible · CSA / LC certified options · Custom sizes available — professional installation recommended
