Saunum AirSolo Wall: the climate device that hides inside the sauna wall

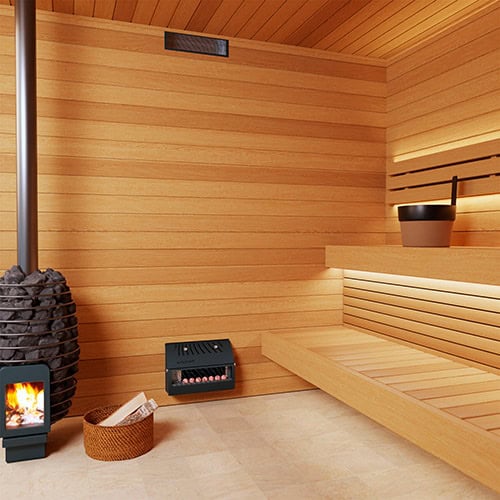

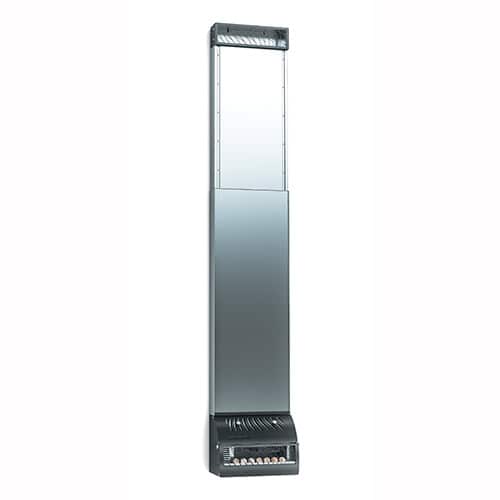

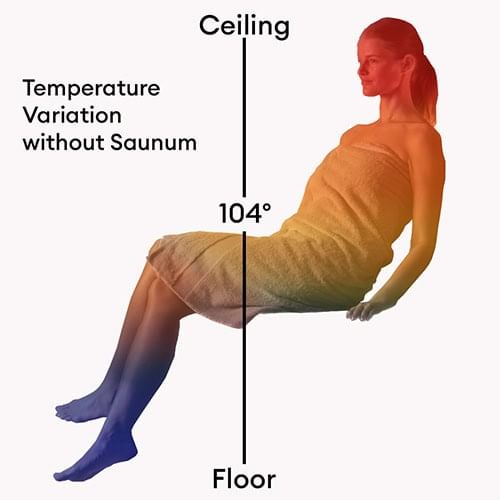

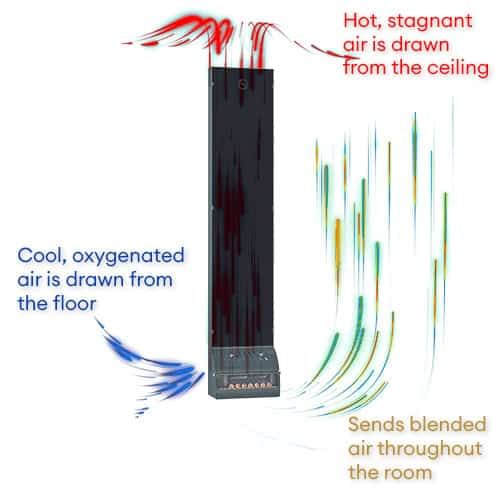

The Saunum AirSolo Wall is a climate device built inside the wall of your sauna, so only a slim stainless steel grille shows, and it works with any heater you already have. It does not heat the room; it spreads the heat more evenly. A quiet three speed fan draws the hottest air from under the ceiling, blends it with cooler, oxygen rich air near the floor, and returns the mix low in the room. This makes the lower bench as warm as the upper one and helps the steam feel softer. The stainless steel unit is 17 inches wide and 9 inches deep, with a height that adjusts from 66 to 90 inches so the intake reaches the ceiling in most rooms. It weighs 66 pounds and hangs inside the wall cavity. Seven Himalayan salt spheres sit in a tray in the air path.

It plugs into a standard 120 volt outlet and works with any electric or wood burning sauna heater. A touch switch mounted outside the hot room lets you choose the fan speed. The box holds the unit, glass air transfer module, intake grille, bottom tray, switch, salt spheres, and two wall strips for hanging it. An air deflector, extra salt spheres, and sweet orange, grapefruit, or eucalyptus aroma oils are optional. Would you rather hang it on the wall? See the Saunum AirSolo 70. The Saunum AirSolo Wall ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.

Features

  • Compatible with large and small saunas
  • Behind the Wall Installation
  • Consistent, balanced steam temperature
  • 3 Different airflow speeds with adjustable ventilation grille
  • Himalayan Salt gives added benefits to the skin, and respiratory
  • Active sweating is increased.
  • Allows for longer sauna intervals
  • Dimensions: 8.89”D x 16.65”W x 66.5” to 90.5”H (Adjustable height)
  • Touch-Sensitive Speed Switch (external, mounted outside the steam room)
  • Product weight: 66.14 lbs.
  • 2-Year Limited Warranty (Consumer Use)

Includes

  • Heat Equalizer
  • Glass Air Transfer Module
  • Air Intake Grille
  • Grille Mounting Bolt
  • Bottom Tray
  • Touch-Sensitive Speed Switch
  • Himalayan Salt Balls: 7 pcs
  • Hanging Strips (2)
  • Installation and Operation Manual
  • 2-Year Limited Warranty (Consumer Use)

Specifications

Model AirSolo Wall
Heat Equalizer Material Stainless Steel
Length 8.89”
Width 16.65″
Height 66.5″ – 90.5″ Adjustable
Heat Equalizer Dimensions 17.2″L x 8.9″D
Product height with Air Intake Grille 66.5″ – 90.5″ (adjustable to ceiling height)
Power Supply Voltage 120V/0.31 A 60HZ
Maximum Temperature allowed with Electric Heater 194F/90C
Maximum Temperature allowed with Wood Burning Heater 212F/100C
Air Intake Grille Measurements 8.89″ x 16.65″
Product weight 66.14 lbs
Airflow Setting Switch Type Touch Sensitive
Installation Type Behind the Wall Installation
Safety Distance There must be no objects in front of the climate device and your feet, and other body parts, must not be kept closer than 20″.
Safety Disclaimer Do not install shower heads or water spray devices above the sauna climate unit!

Manual

Sizing-Your-Saunum

Saunum AirSolo Quick Assembly Guide

Saunum-AirSolo-Installation-Operation-Manual

FAQ

What is different about the AirSolo Wall compared with the wall-hung AirSolo models?

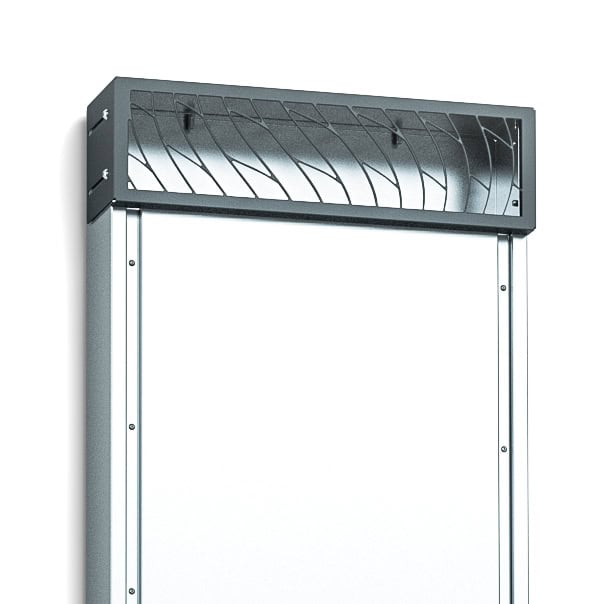

It is built to sit inside the wall behind the sauna lining rather than hang on the surface, with only a slim stainless grille showing. Its height adjusts from 66.5 to 90.5 inches so the hot-air intake can reach the ceiling in different rooms, and its speed control is a separate switch rather than a knob on the unit. The air-mixing function is the same.

Where does the speed switch go?

The Specifications tab lists a touch-sensitive switch, and the installation manual says this external switch must be mounted outside the steam and washing area, for example in the changing room next to the door. It has three touch areas for the three fan speeds; press and hold the desired speed to switch the unit on or off.

Does it work with any sauna heater?

The page states it enhances any electric sauna heater, and the Specifications tab lists allowed maximums of 194 F with an electric heater and 212 F with a wood-burning heater. The manual also notes the unit protects itself: if the air at its lower section exceeds 176 F the fan stops until the temperature drops back below the cutoff.

What electrical supply does the AirSolo Wall need?

A dedicated 120 V circuit, per the Specifications tab. The manual requires permanent wiring by a qualified electrician with overcurrent protection and a residual-current device, protective earth, and at least 16 AWG cable suited to the temperatures where it runs. The power cable enters from below and must not lie on the steam room floor.

How is the in-wall version installed?

The manual describes fitting the unit in a wall recess and securing the lining boards to the sheet metal face of the duct, then covering any open gaps with the specified aluminum tape before use. The hot-air intake telescopes according to ceiling height, the lower edge must stay at least 4 inches above the floor, and the front grille needs an unobstructed 20-inch clearance.

Why does it come with Himalayan salt?

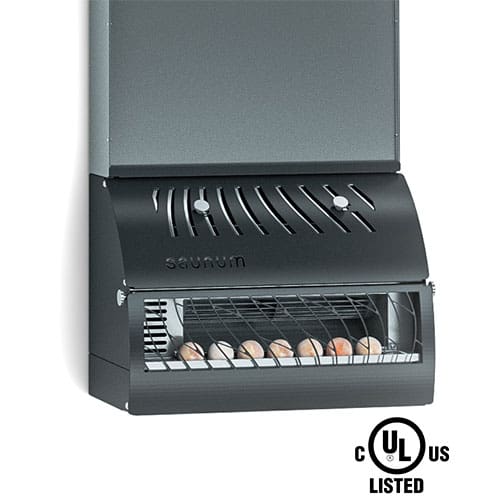

Seven Himalayan salt balls are included and sit in the bottom tray between the fan and the discharge grille, so the moving air picks up salt ions and spreads them around the room. Use is optional; the manual says you can leave the balls out with no effect on the air-mixing function, and suggests checking their wear about once a year.

What warranty and add-ons apply?

The page lists a 2-year limited warranty for consumer use; the manual conditions it on installation by a qualified electrician and excludes the salt balls. Add-ons on this page are the Saunum Air Deflector under Operating Accessories and Himalayan salt or aroma oil sets under Sauna Heater Add-Ons, with prices on the selectors. See the whole line in our Saunum collection.
