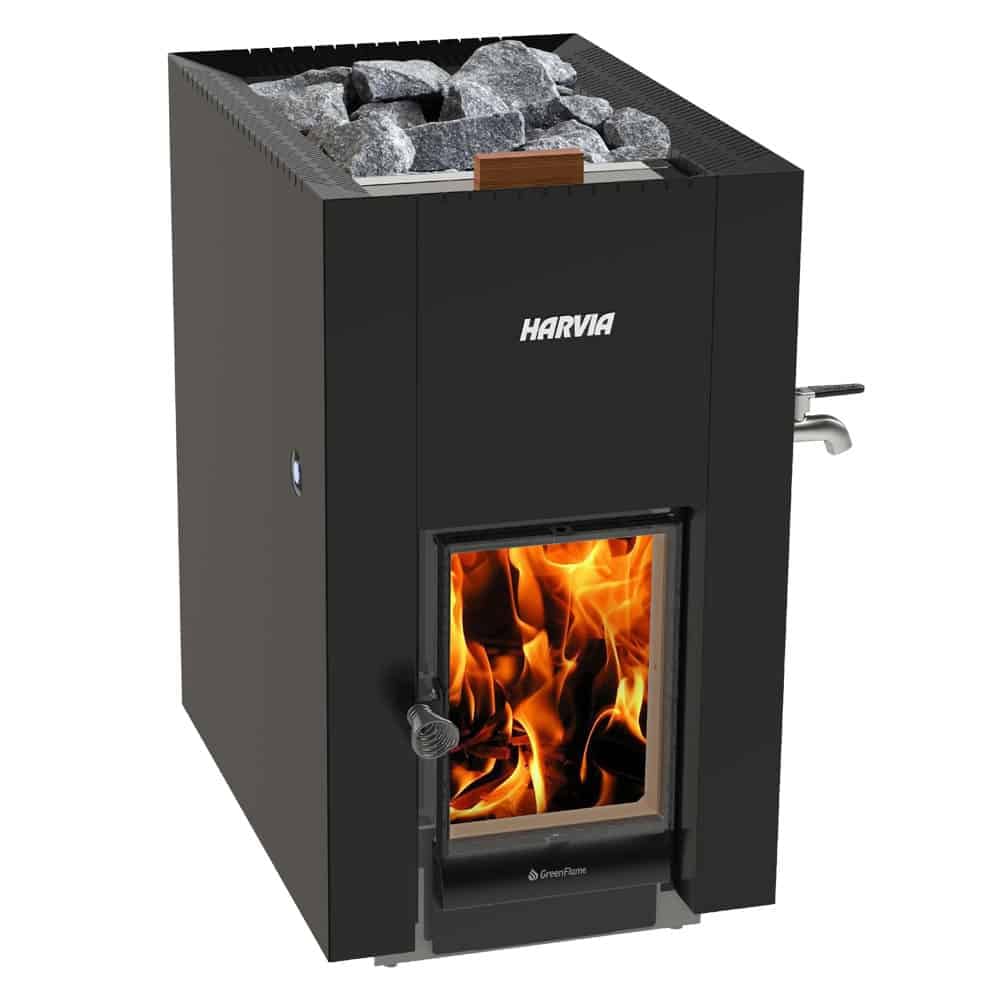

Harvia Linear 22 GreenFlame ES: a clean burning wood stove with a built in 5 gallon water tank

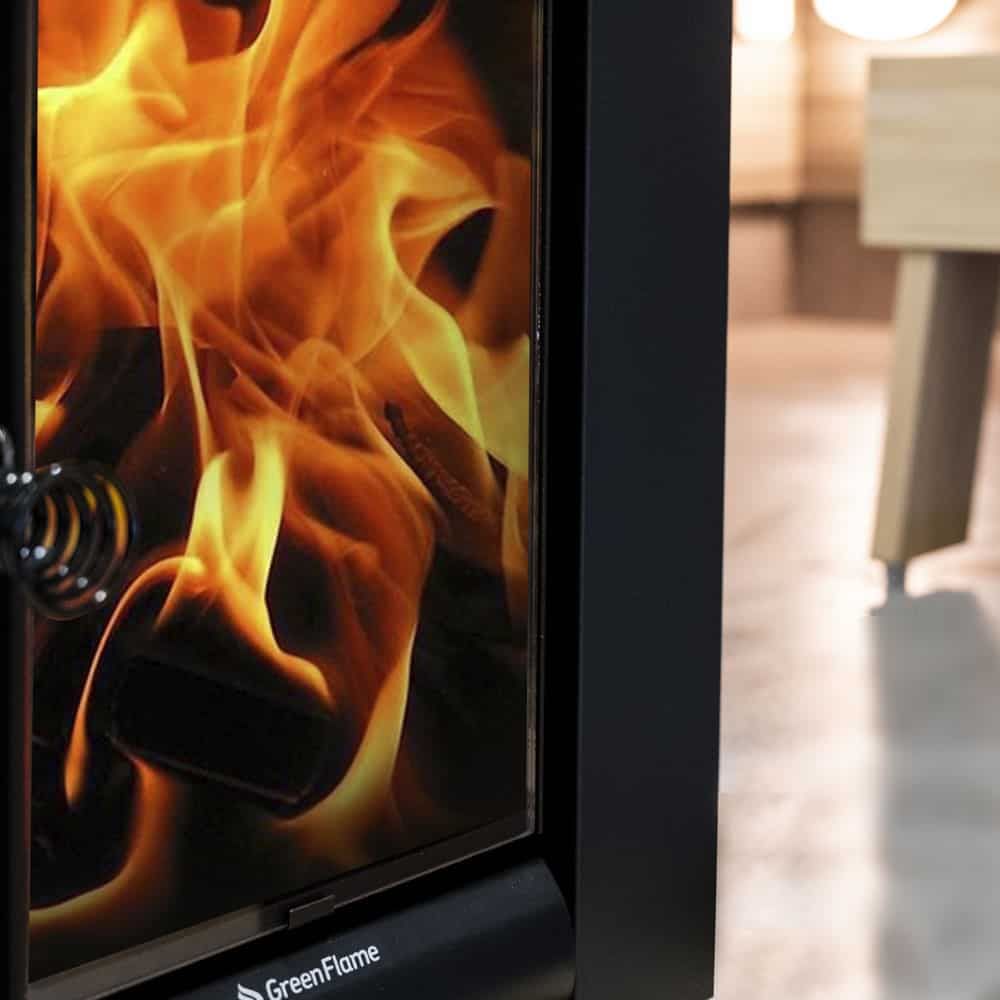

The Harvia Linear 22 GreenFlame ES is the same 15.7 kW matte black wood stove as the Linear 22 GreenFlame, with a 20 liter water tank (about 5 gallons) built onto the side. It heats wash water while it heats the sauna. This box-shaped steel stove suits rooms from 318 to 636 cubic feet. It stands 30 inches tall, measures 17.7 inches wide and 26 inches deep with the tank, and weighs 133 pounds. The GreenFlame firebox cuts smoke particles by 20 percent and carbon monoxide by 70 percent. The large glass door lets you watch the fire, and a spout low on the tank lets you fill a bucket without lifting the tank.
The box holds the stove, the manual, and the warranty card. Sauna stones are sold separately, so add the 2 boxes it needs on the page. A chimney is not included, so pick the chimney kit, any extensions, and the adapter to 6 inch US pipe on the page. A floor plate and a protective sheath are optional. Don’t need the tank? The plain Harvia Linear 22 GreenFlame stove costs less. The Harvia Linear 22 GreenFlame ES ships free from My Cozy Outdoors with No Sales Tax (except WY) and the full manufacturer warranty.
FAQ
How does the built-in water tank work?
This stove comes with a 20-liter water tank built in, so you can heat water with speed and efficiency while you fire the sauna. The spout is located near the bottom of the stove, letting you safely run hot water into any container. The tank is part of the stove itself – there is nothing extra to order for it.
What does the GreenFlame fire chamber actually do?
The GreenFlame fire chamber gives this stove a controlled burn: it reduces the particulate emissions generated by wood combustion by 20% and cuts carbon monoxide emissions by 70%. You can relax knowing you are burning cleaner while still enjoying a real 15.7 kW wood fire behind the large glass door.
Are the sauna stones included?
The stove requires a minimum of 88 lbs of stones (two boxes), and they are available right on this page as the Required Stones selection – add the two boxes to your order and they ship with the stove. Once everything arrives, place the stones according to the installation and operation manual before your first heat-up.
What safety clearances are required?
The non-combustible safety distances on the spec sheet are 20 inches in front, 4 inches behind and at the sides, and 50 inches to the ceiling, with a minimum room height of 83 inches. Confirm your final placement with the installation and operation manual linked on this page and your local building and fire codes.
What size sauna suits this stove?
Harvia describes this Linear 22 GreenFlame ES as ideal for medium-sized saunas, and it delivers 15.7 kW of output with an 83-inch minimum room height in the spec table. For your room’s exact recommended volume range, check the installation and operation manual linked on this page against your sauna’s measurements.
Is a chimney kit included?
No – the package contains the stove, the installation and operation manual, and the warranty. Chimney and assembly kits, chimney extensions, smoke pipes, and a 4.5-inch Euro to 6-inch USA pipe adapter can be added to your order from this page’s add-on menus, and the flue should be routed per the manual and your local codes.
How big is the stove, and what warranty does it carry?
It measures 30 inches high, 17.7 inches wide, and 26 inches deep, weighs 133 lbs, installs on the floor, and is backed by a 2-year warranty. If the cleaner-burning approach appeals to you, you can compare the other GreenFlame wood stoves Harvia offers.
Shipping
The weight or packaging of this product requires delivery by special appointment, and on a wooden pallet.
The driver is responsible for curbside delivery “only” and will lower the items to ground level.
Prior to shipping this product, we contact customers to share shipment details and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses.
